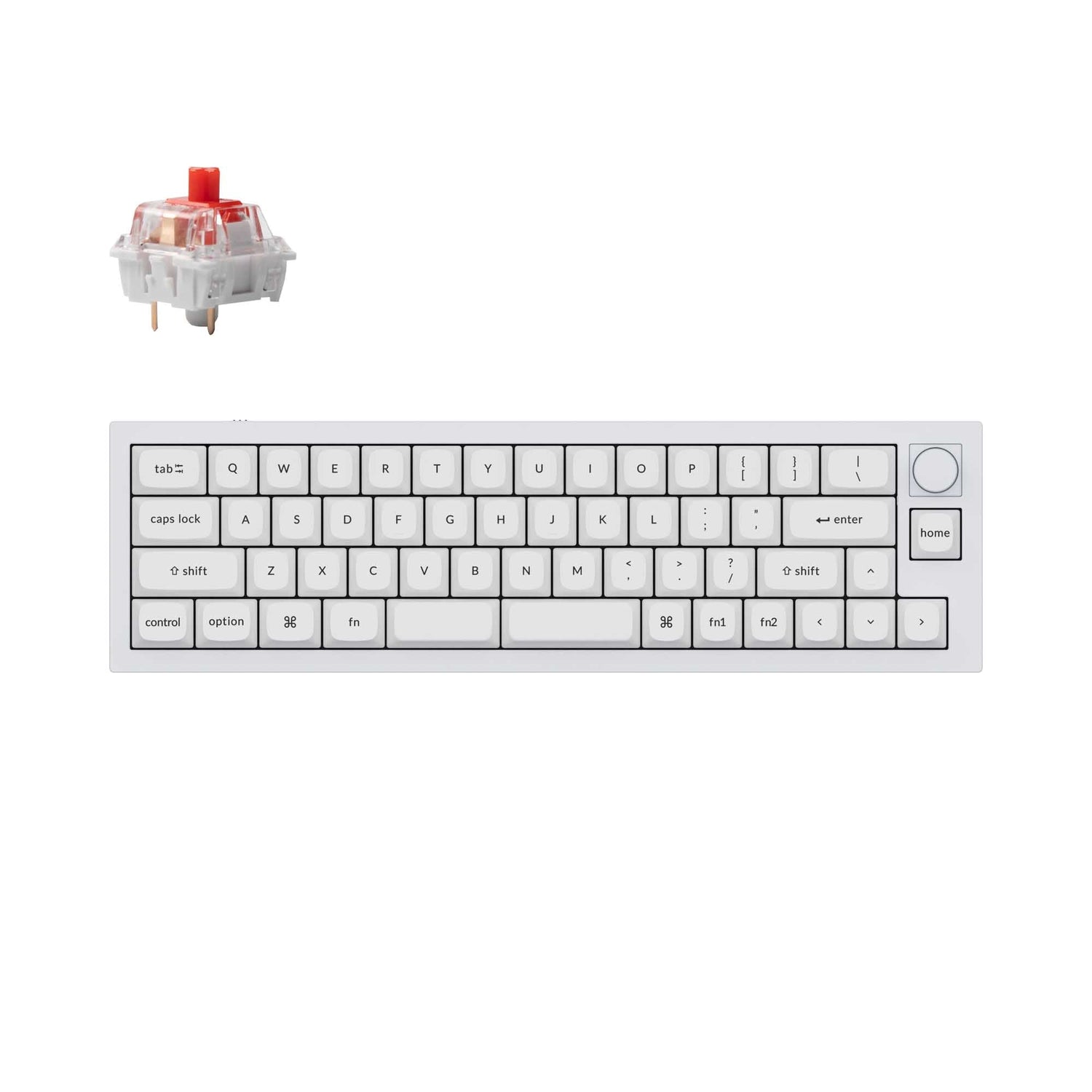

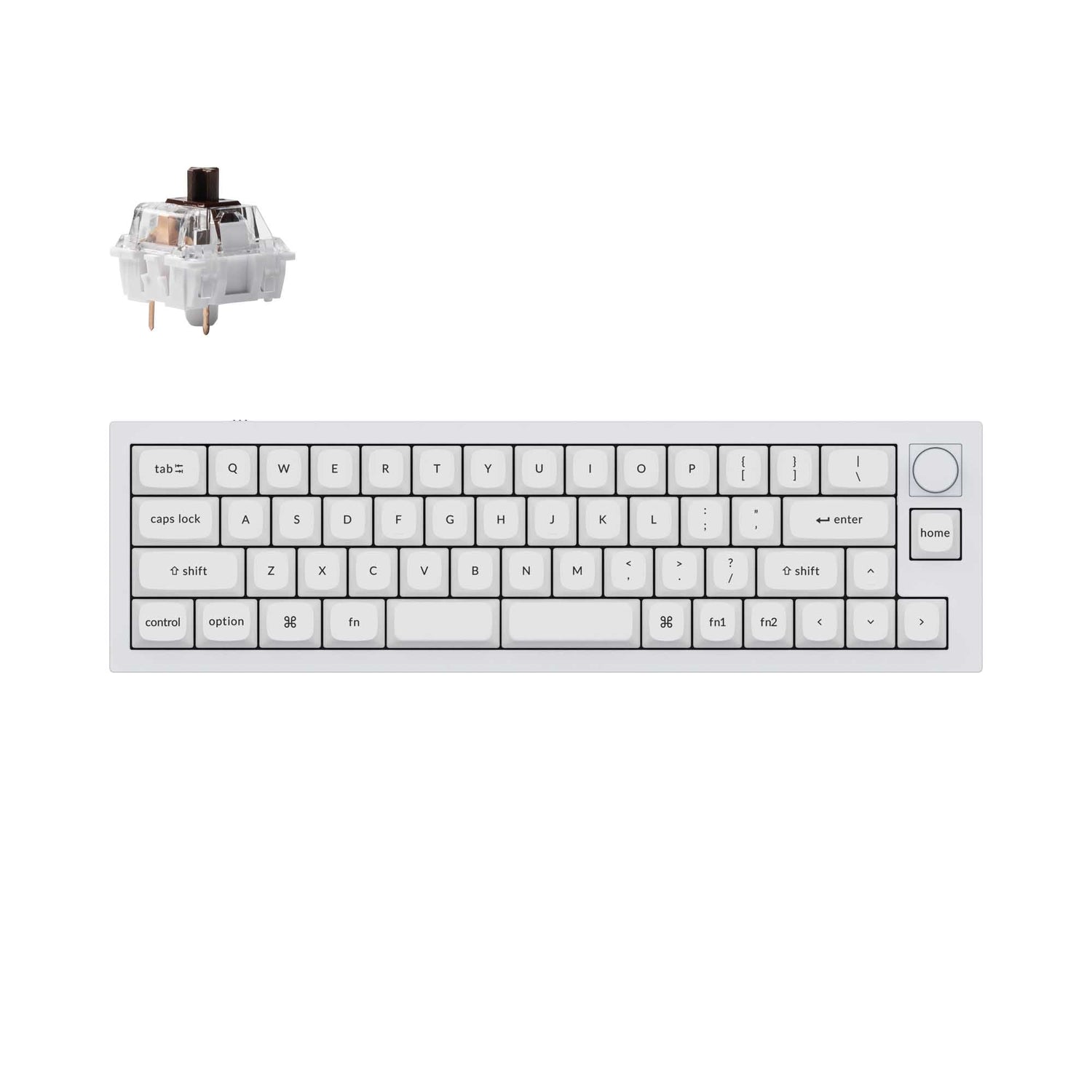

Keychron Q9 QMK benutzerdefinierte mechanische Tastatur - Fully Assembled Knob (Plus Version) / Kohlenstoffschwarz / Keychron K Pro Rot ist auf Lager und wird versandt, sobald es wieder verfügbar ist
Verfügbarkeit für Abholungen konnte nicht geladen werden
Die komplett montierte Version beinhaltet:
- Die Tastaturplatine, das Gehäuse und die Stahlplatte.
- Double-Shot OSA PBT-Tastenkappen (einschließlich Mac- und Windows-Tastenkappen).

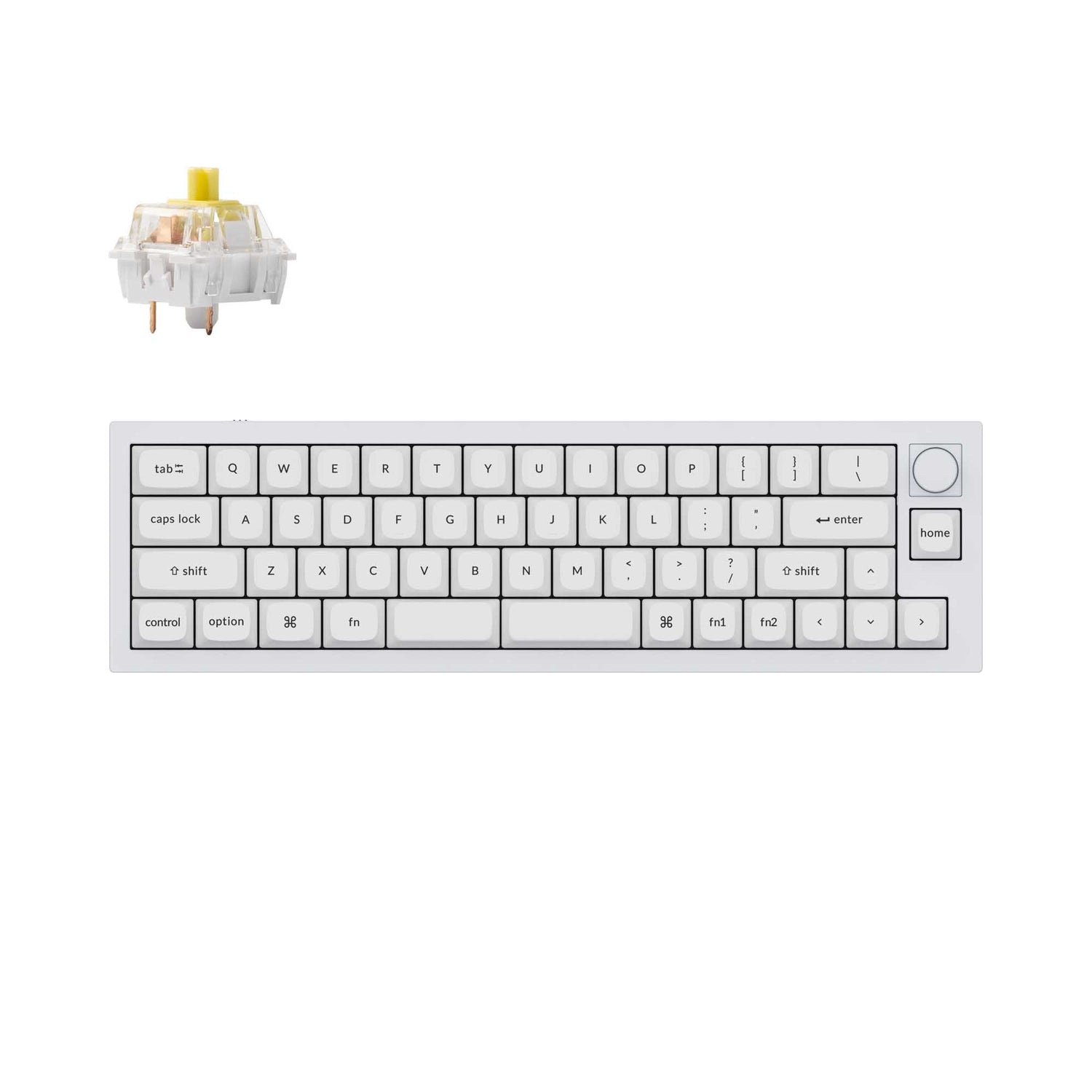

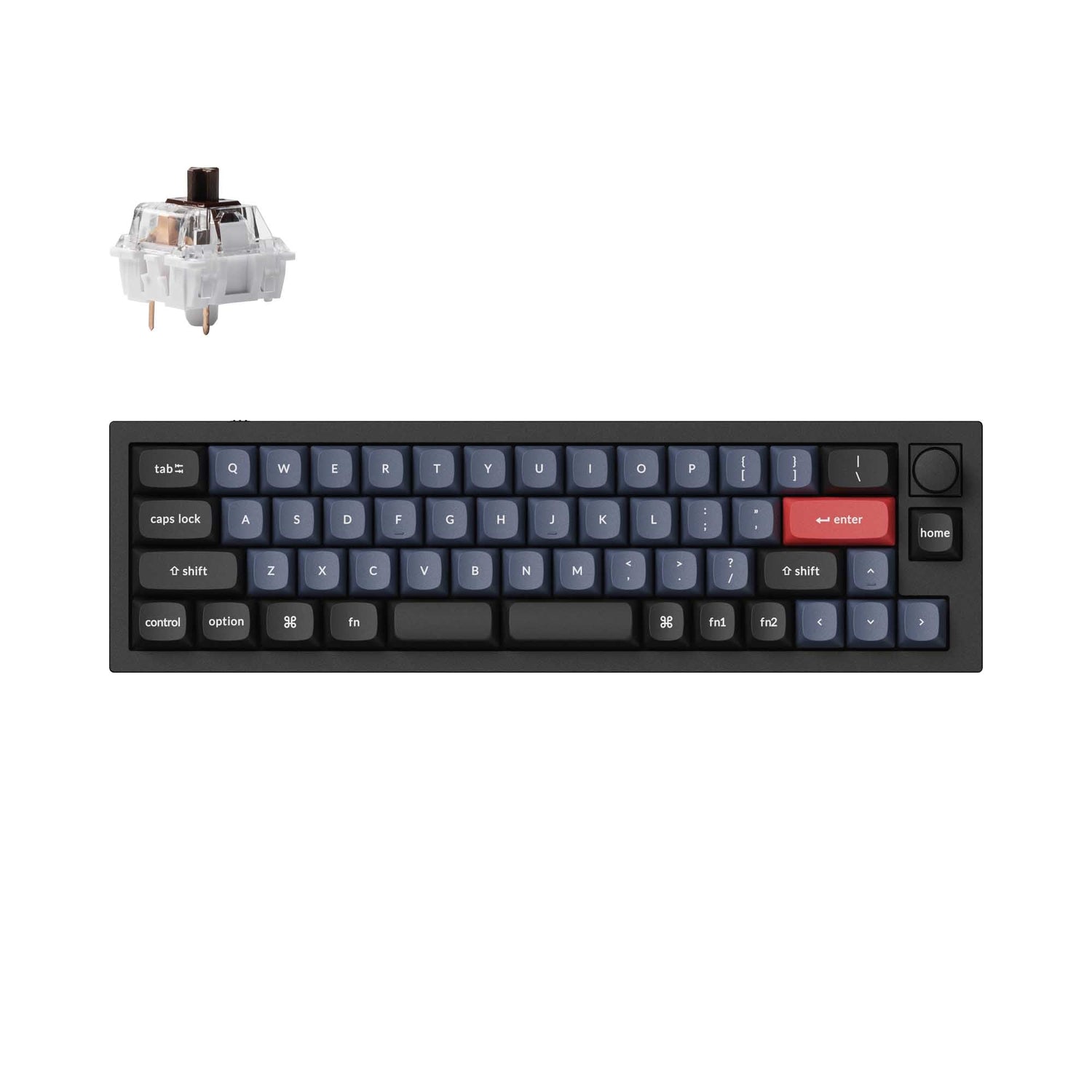

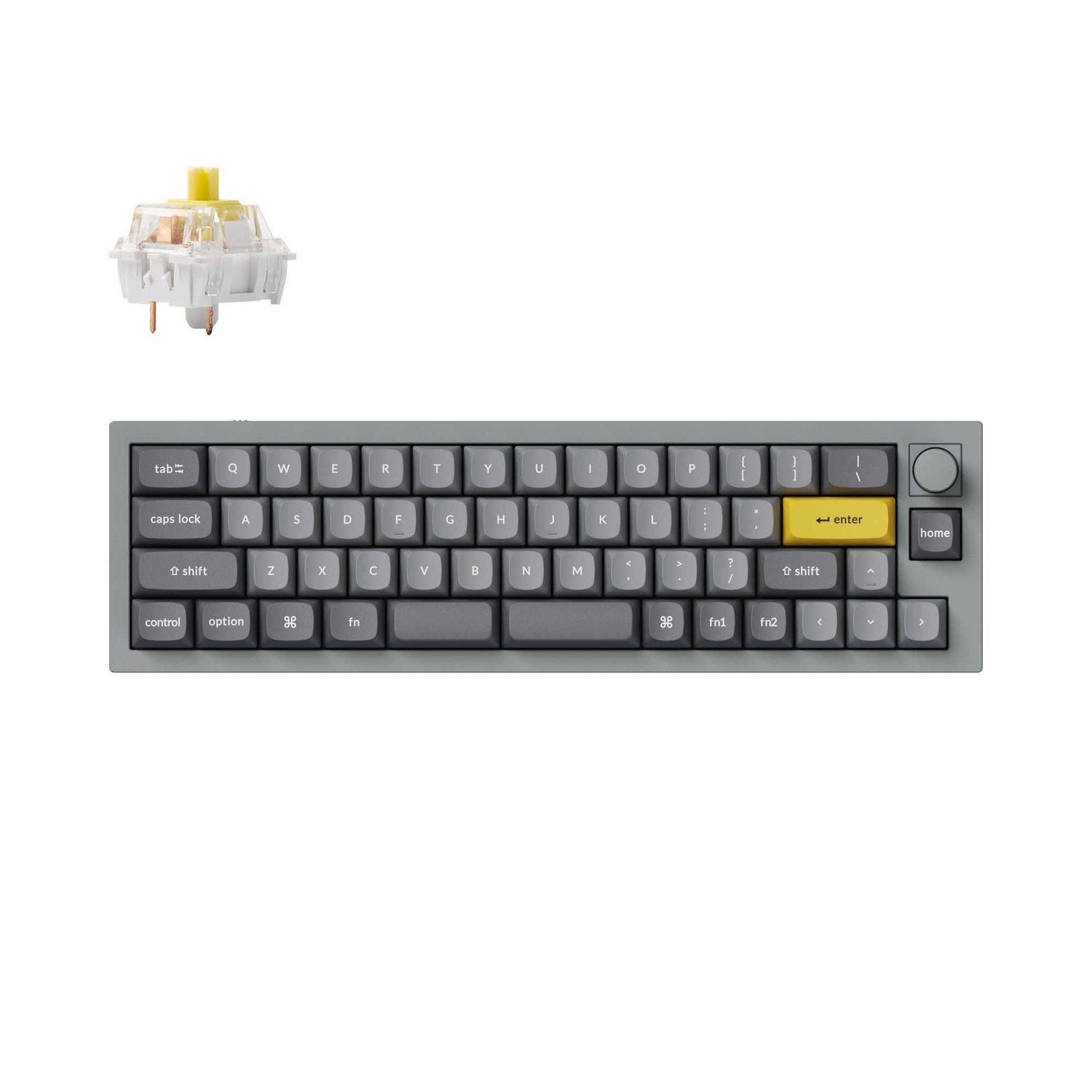

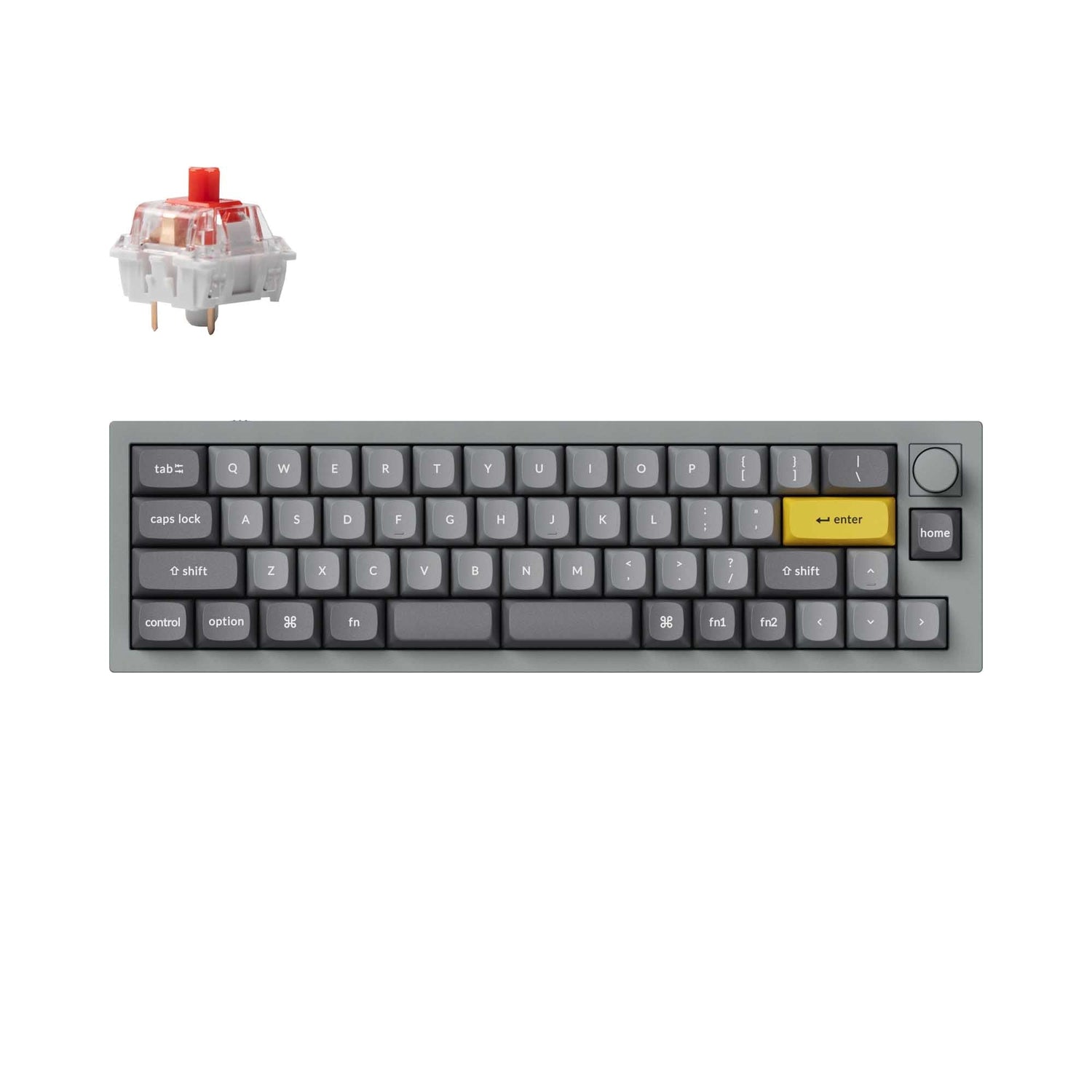

- Gateron G Pro- (Q9) oder Keychron K Pro-Schalter (Q9 Plus- Version ).

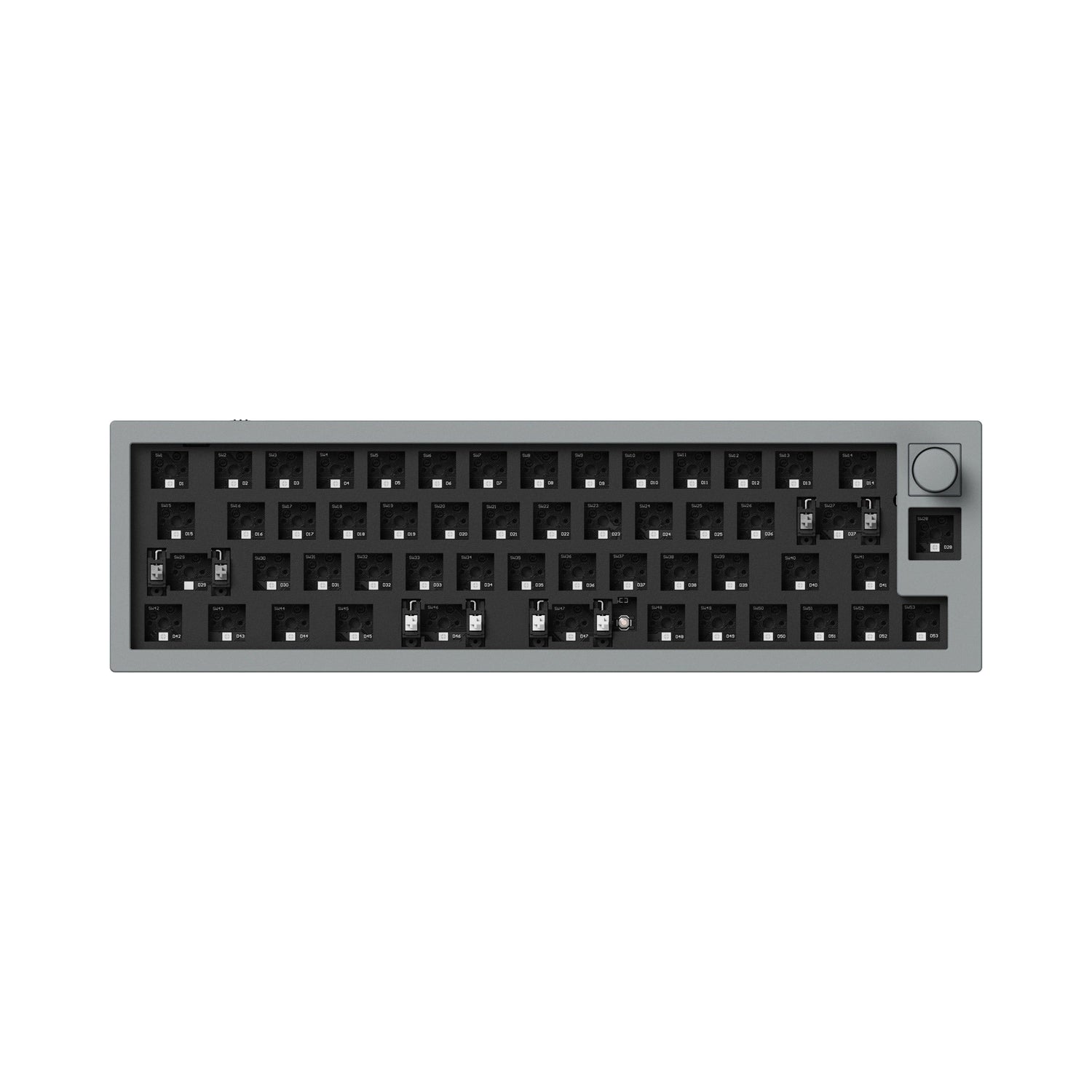

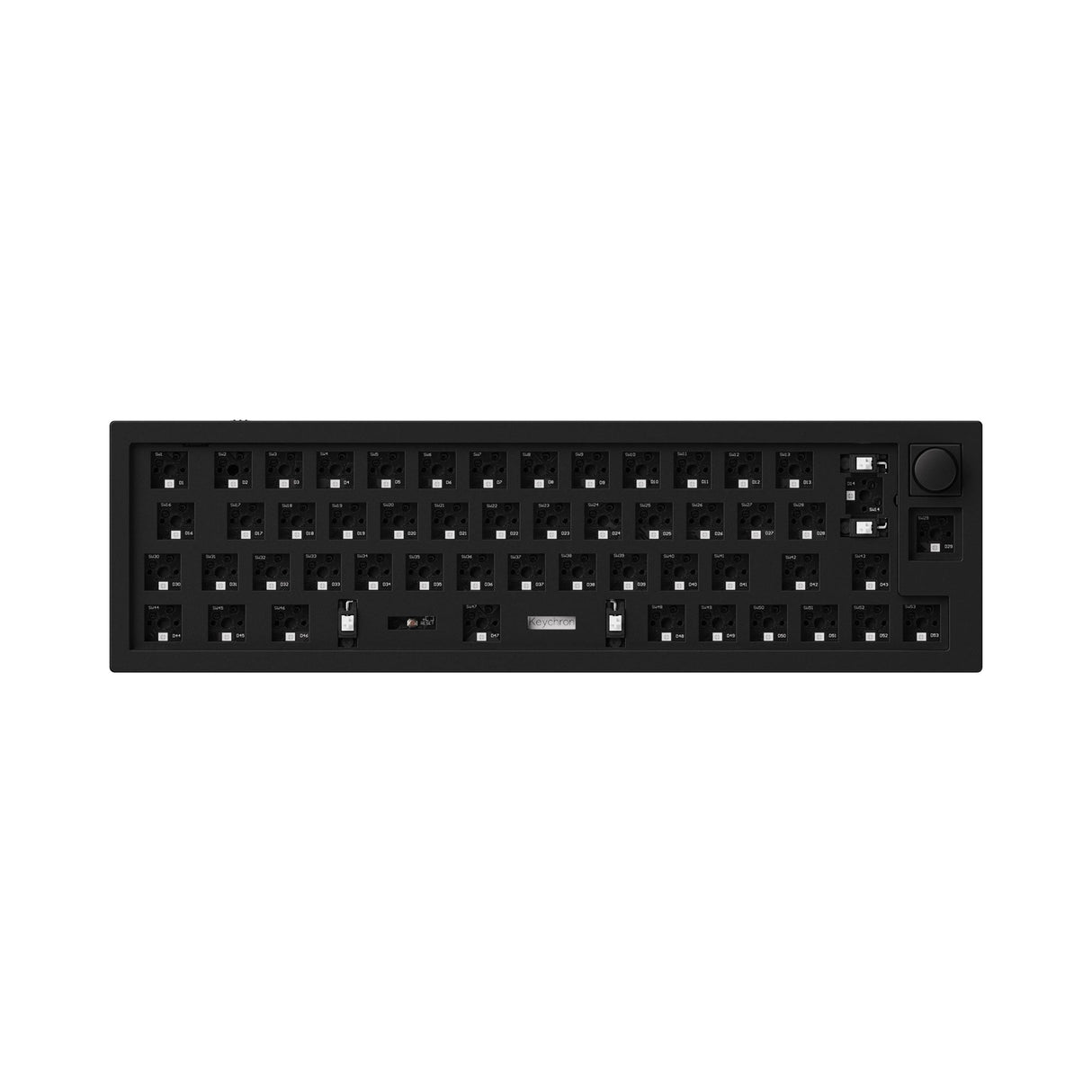

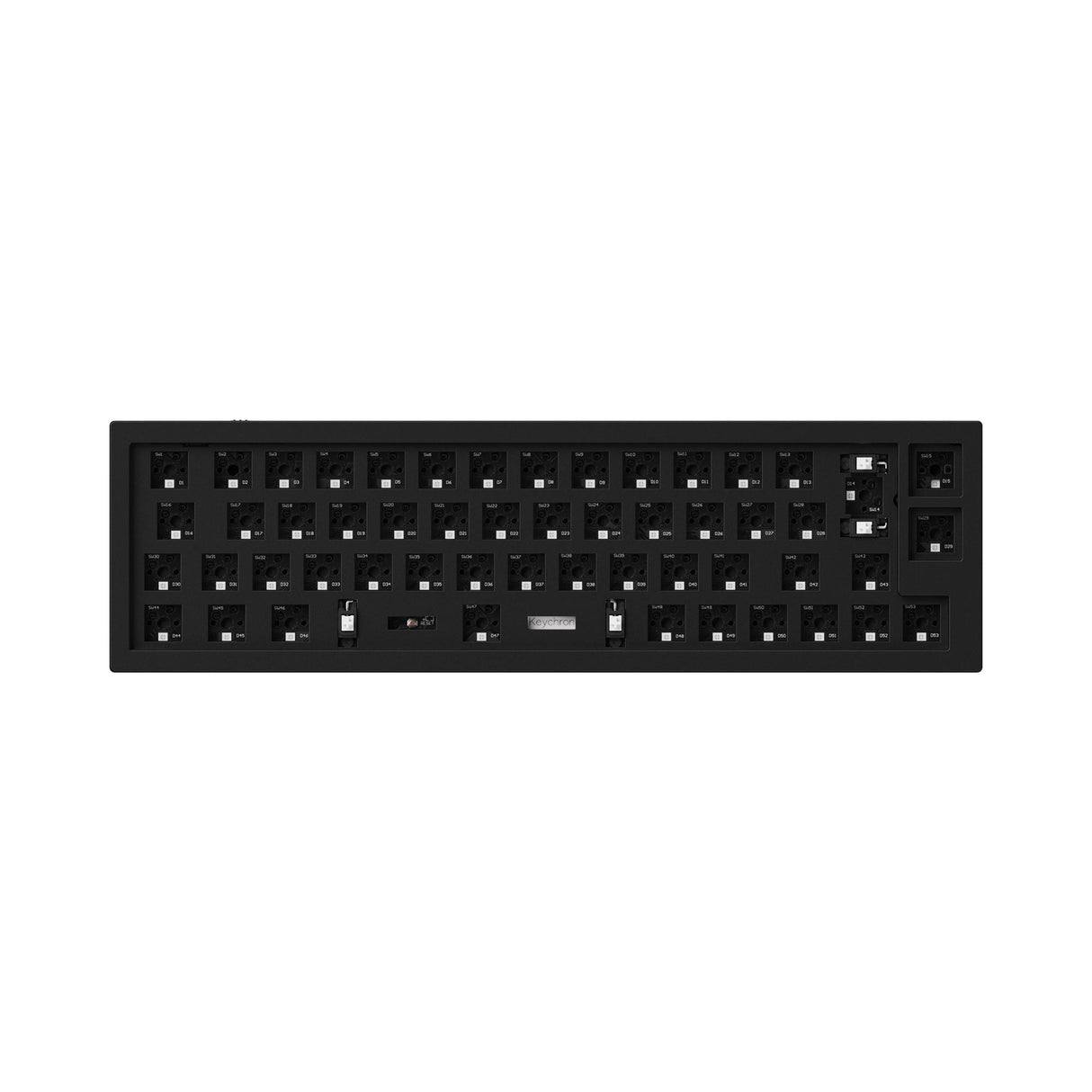

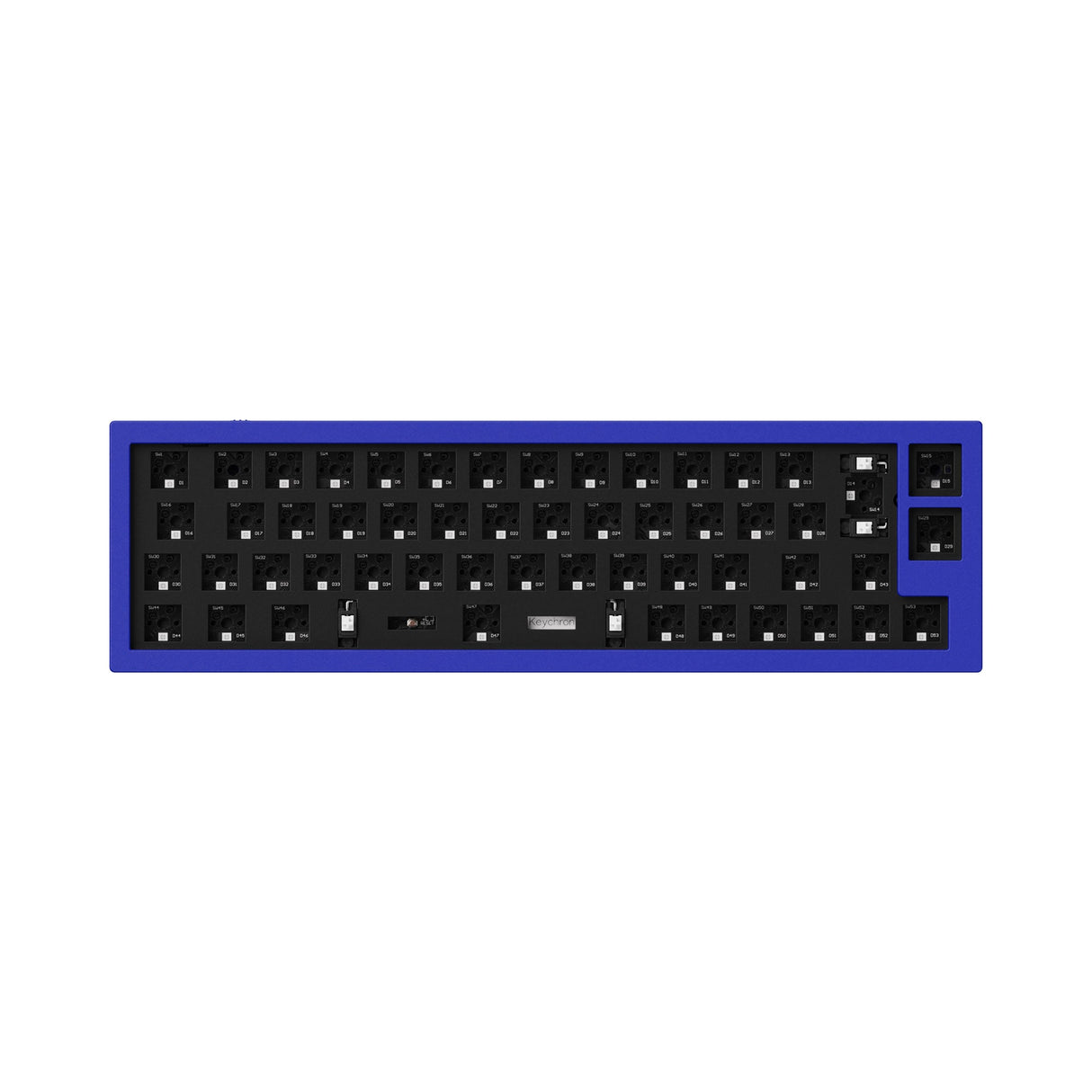

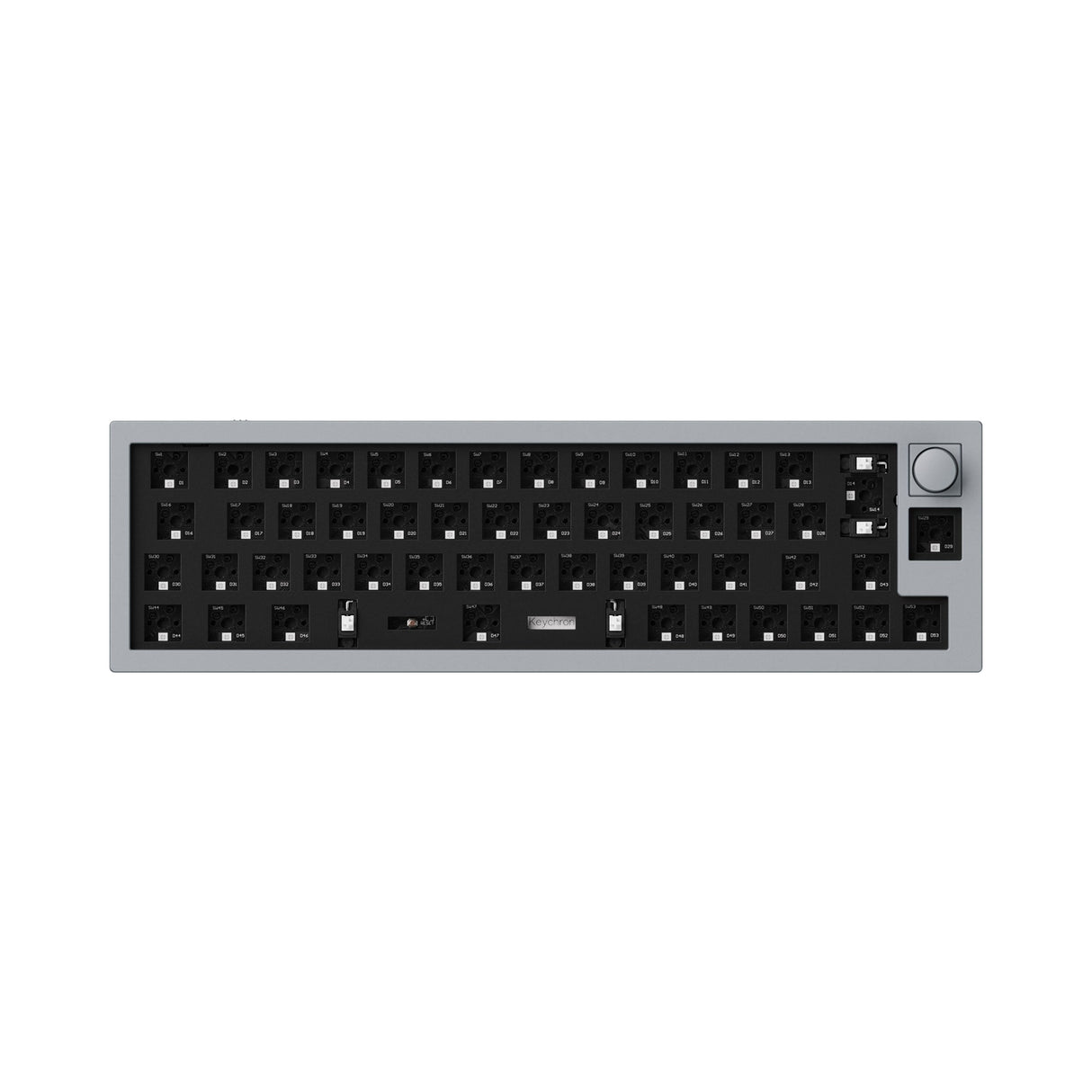

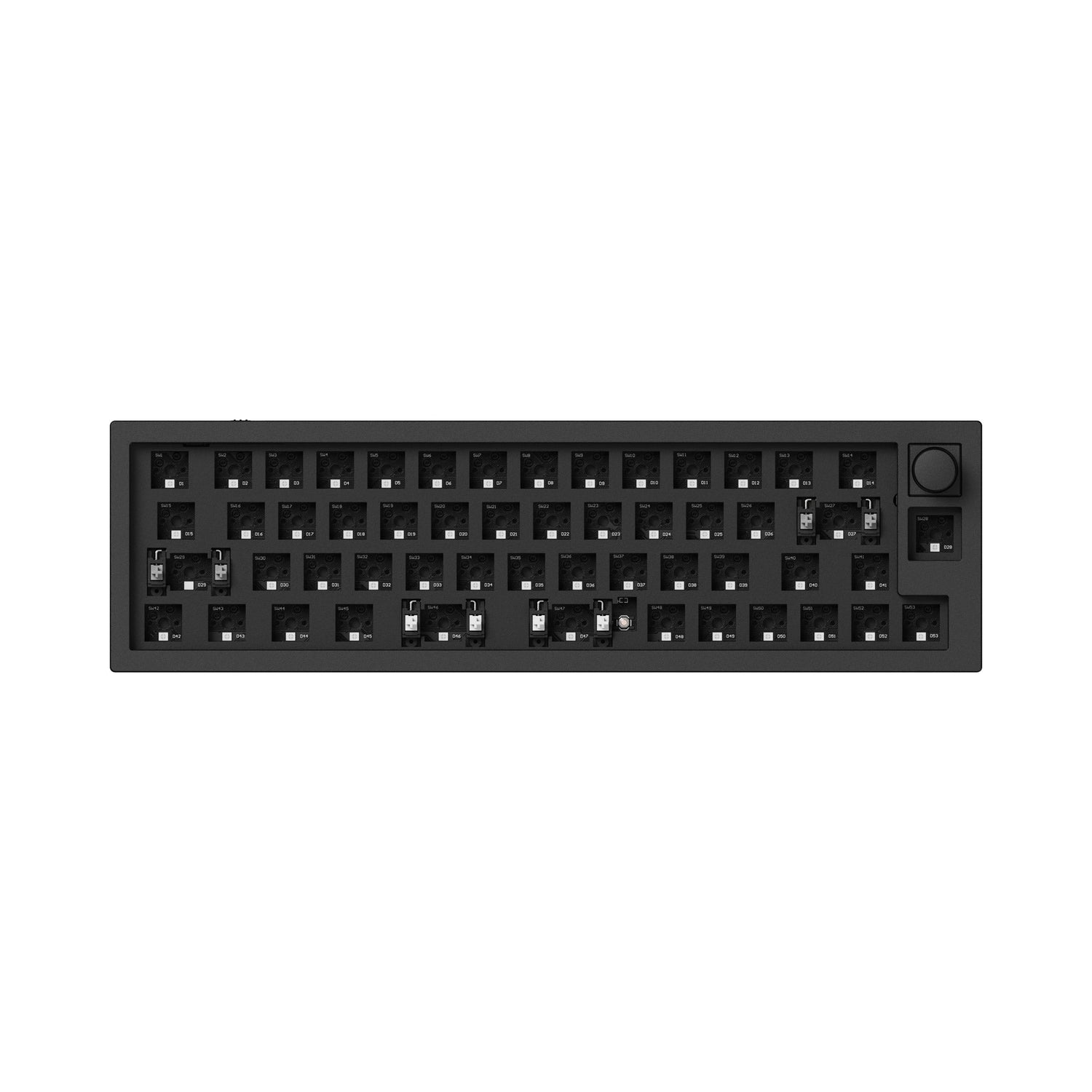

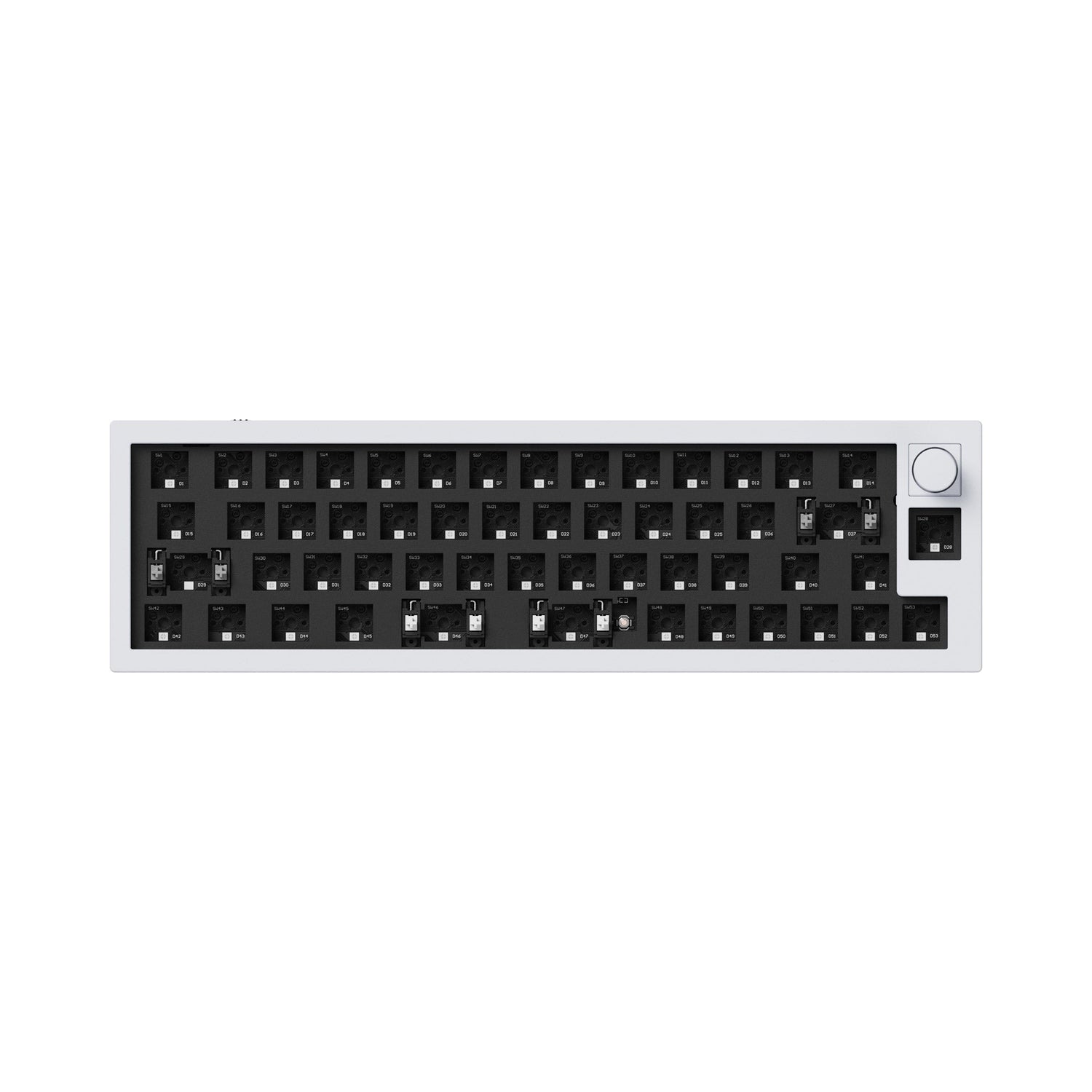

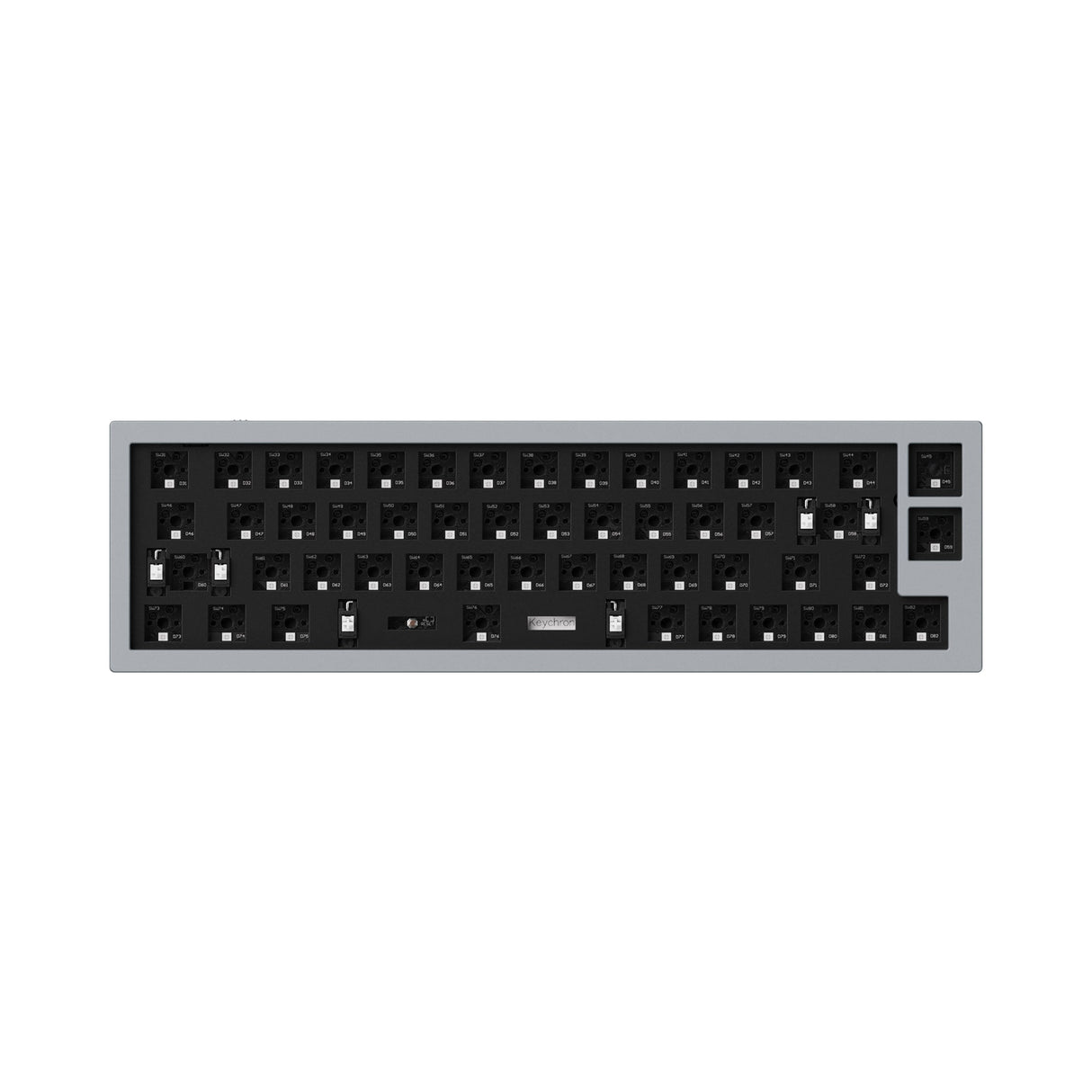

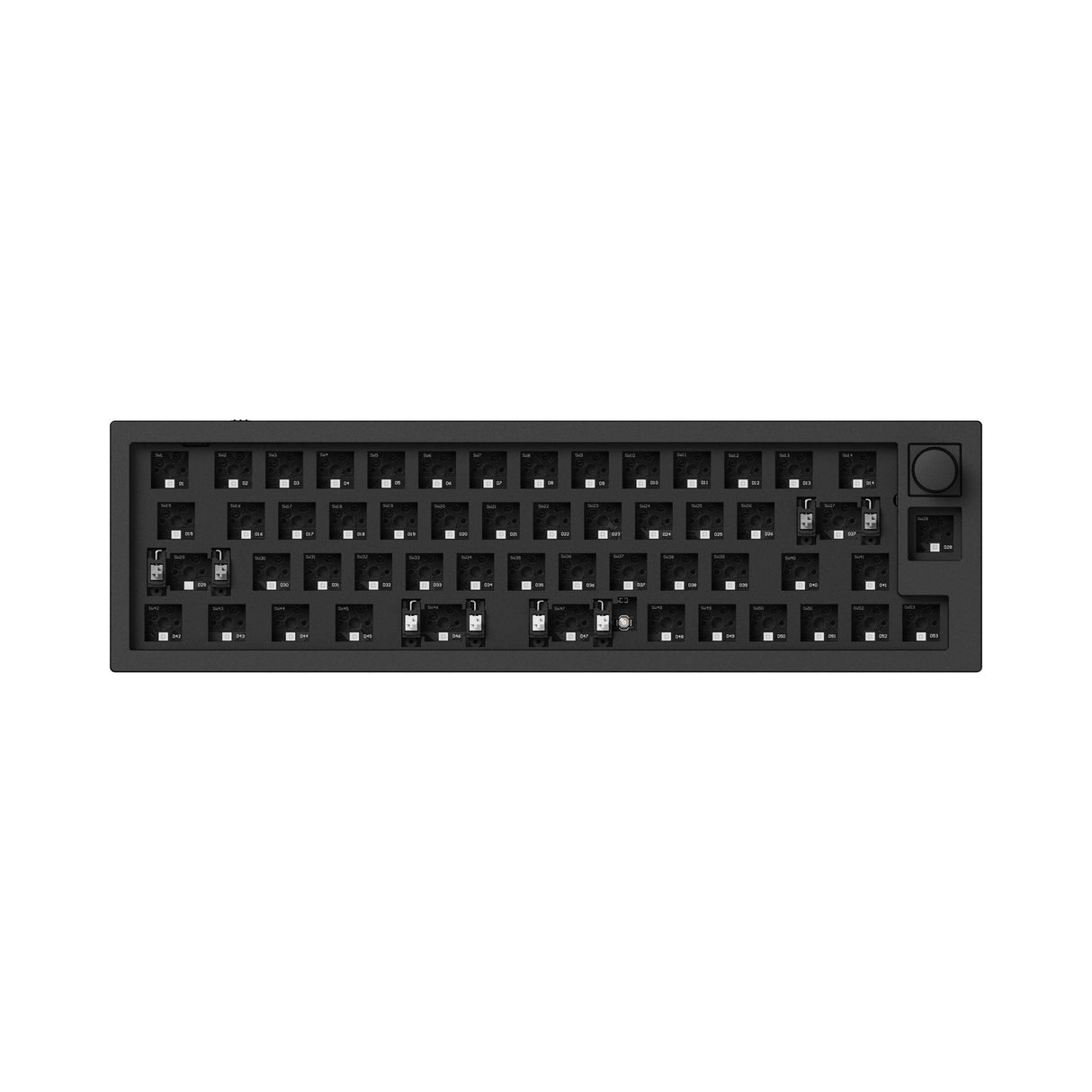

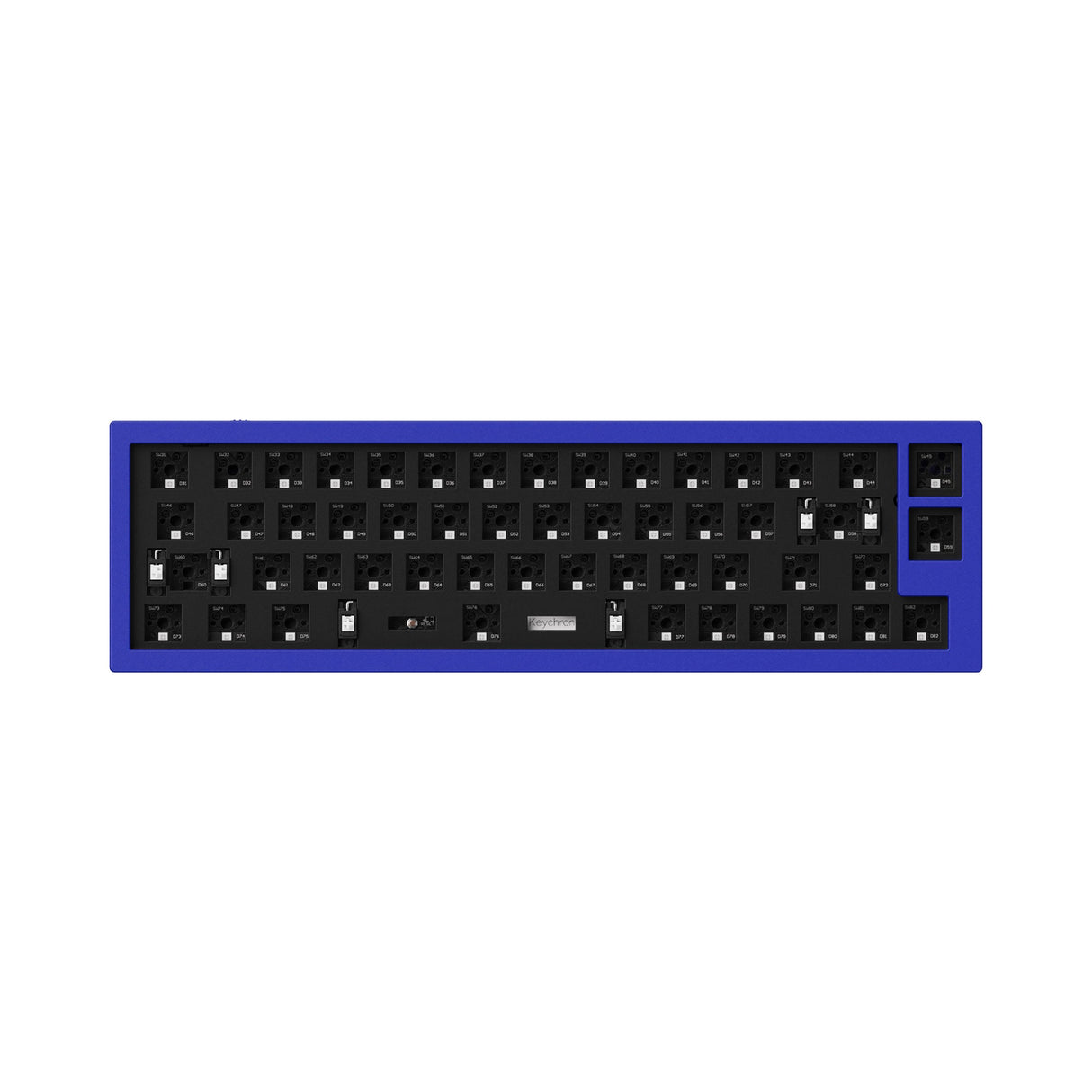

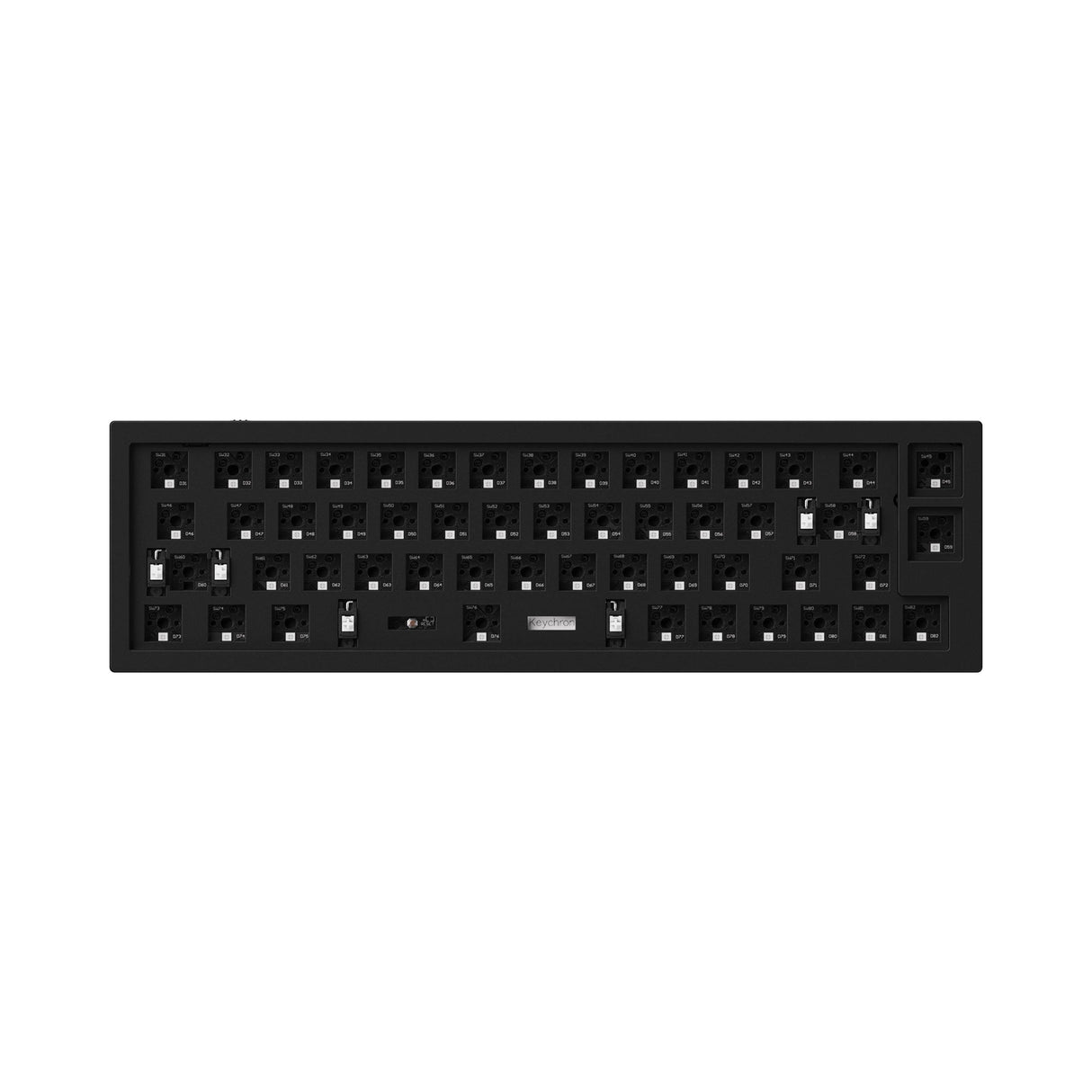

Die Barebone-Version enthält keine Tastenkappen und Schalter.
Für die Q9- und Q9 Plus-Versionen können keine Rabattcodes verwendet werden.
Bitte senden Sie Ihre E-Mail an „Benachrichtigen Sie mich, wenn verfügbar“, wenn das Produktmodell nicht vorrätig ist.
Keychron Q9 QMK benutzerdefinierte mechanische Tastatur
Keychron Q9
The Q9 is a 40% ultra-mini all-metal custom keyboard ideal for a variety of situations and will upgrade your typing experience. With full aluminum CNC machined body, double-gasket design, and QMK/VIA support, the Q9 is the ultimate choice for the ultra-mini keyboard.
Choose the keycaps, switches and more accessories for your Q9
A Refined Piece Of Metal Art
The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q9.
All-Around Customizable Keyboard
To build a fully customizable keyboard, we designed every component easily assembled. Therefore, you can customize and adjust each component you want.
Double-Gasket Design
The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
An Epic Core Inside The Keyboard
A brand new ultra-low-power MCU Arm structure that is powerful and armed with 128K Flash to provide more flexibility for developers. The polling rate is up to 1000 Hz out of the box, which makes latency non-existent for the competitive game.
OSA Profile Double-shot PBT Keycaps
For the new double-shot PBT keycaps, we built a new profile. It has a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
Switch layouts between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron Q9 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Programmable Knob
Designed to enhance your creative workflow, the premium rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.
You can easily customize the Q9's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.
Program with QMK & Launcher.
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.
Click here to use Keychron Launcher* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.
Hot-swappable.
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.
South-facing RGB LED Lights.
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
Note: The Q9's top case has sharper corners to make it much more compatible with third-party keycaps.

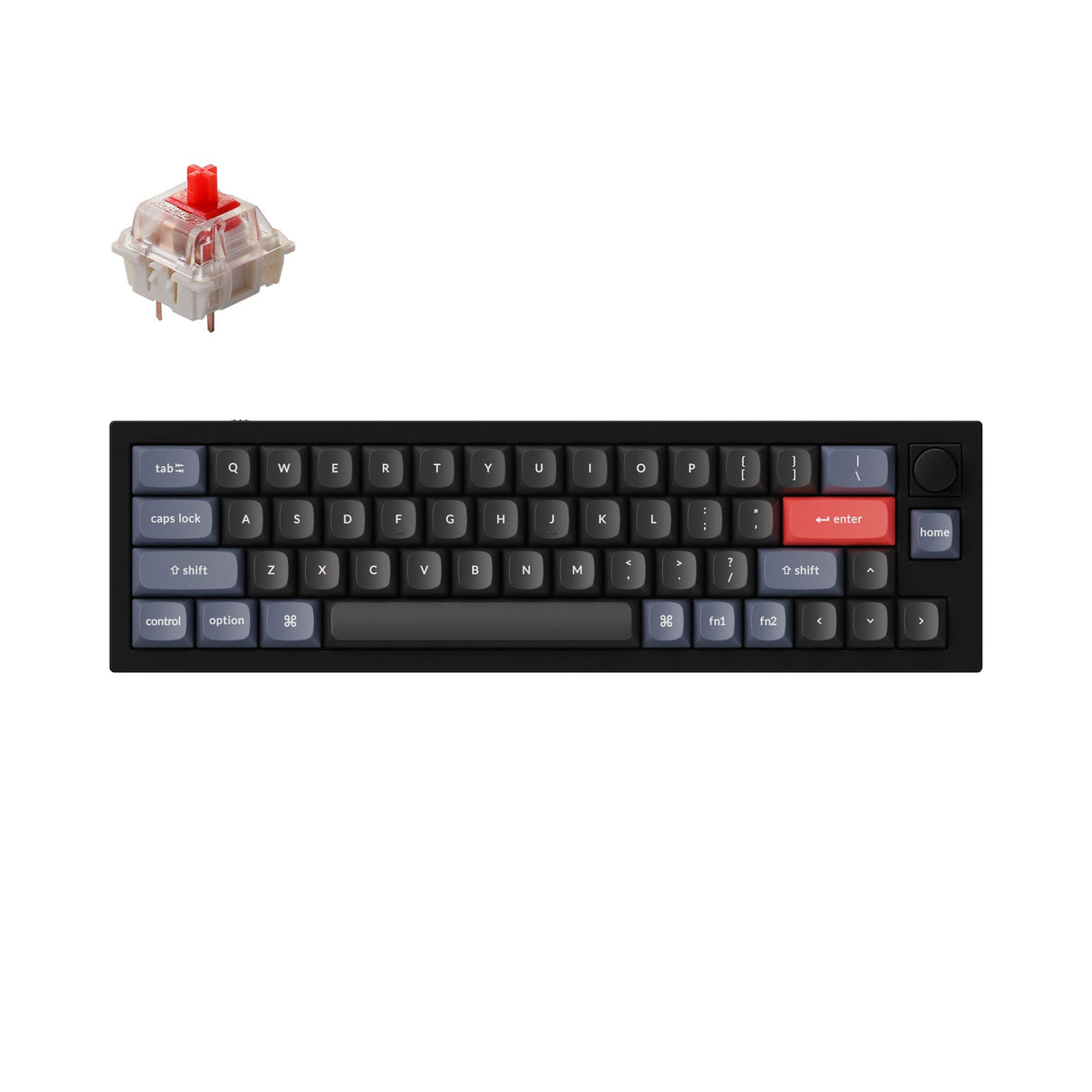

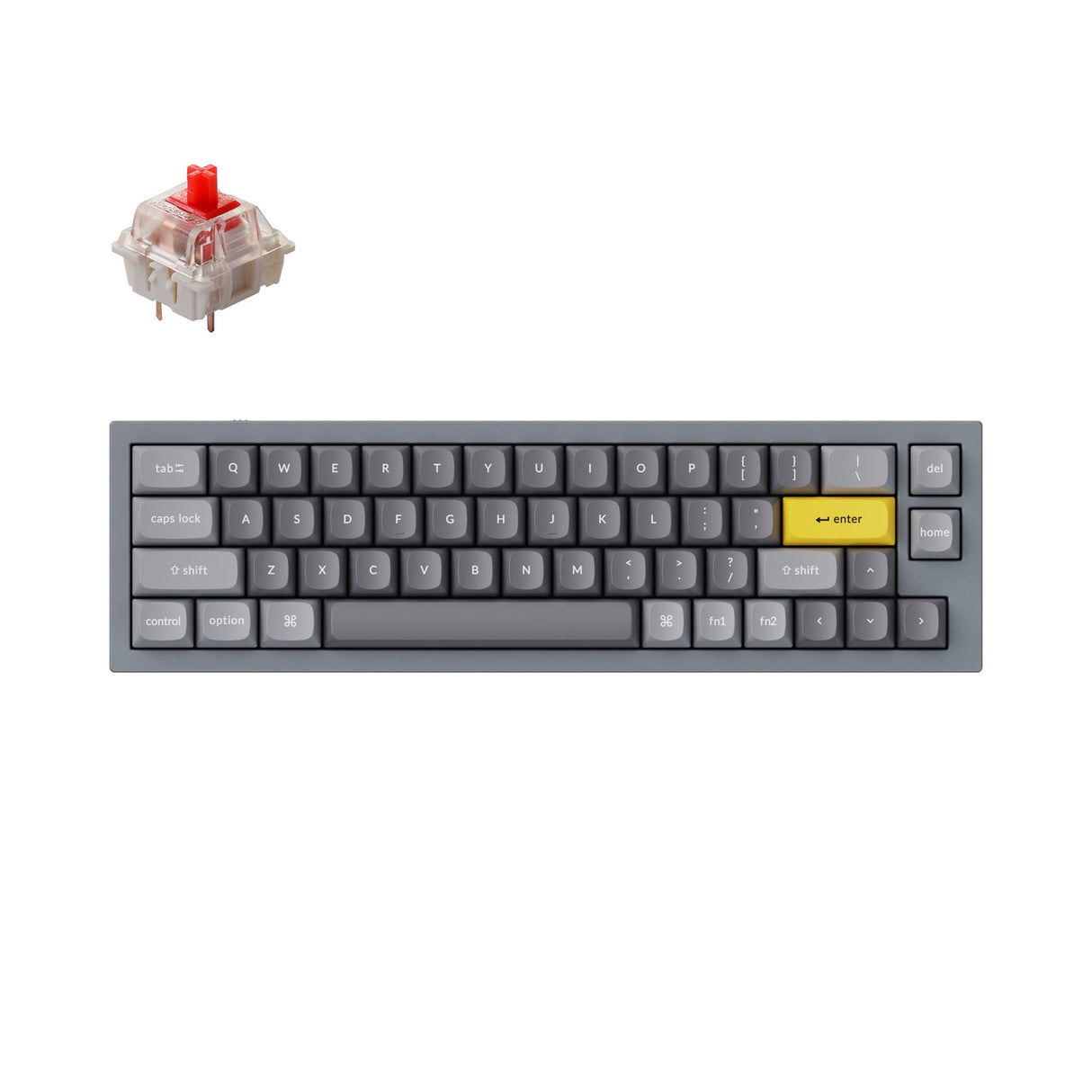

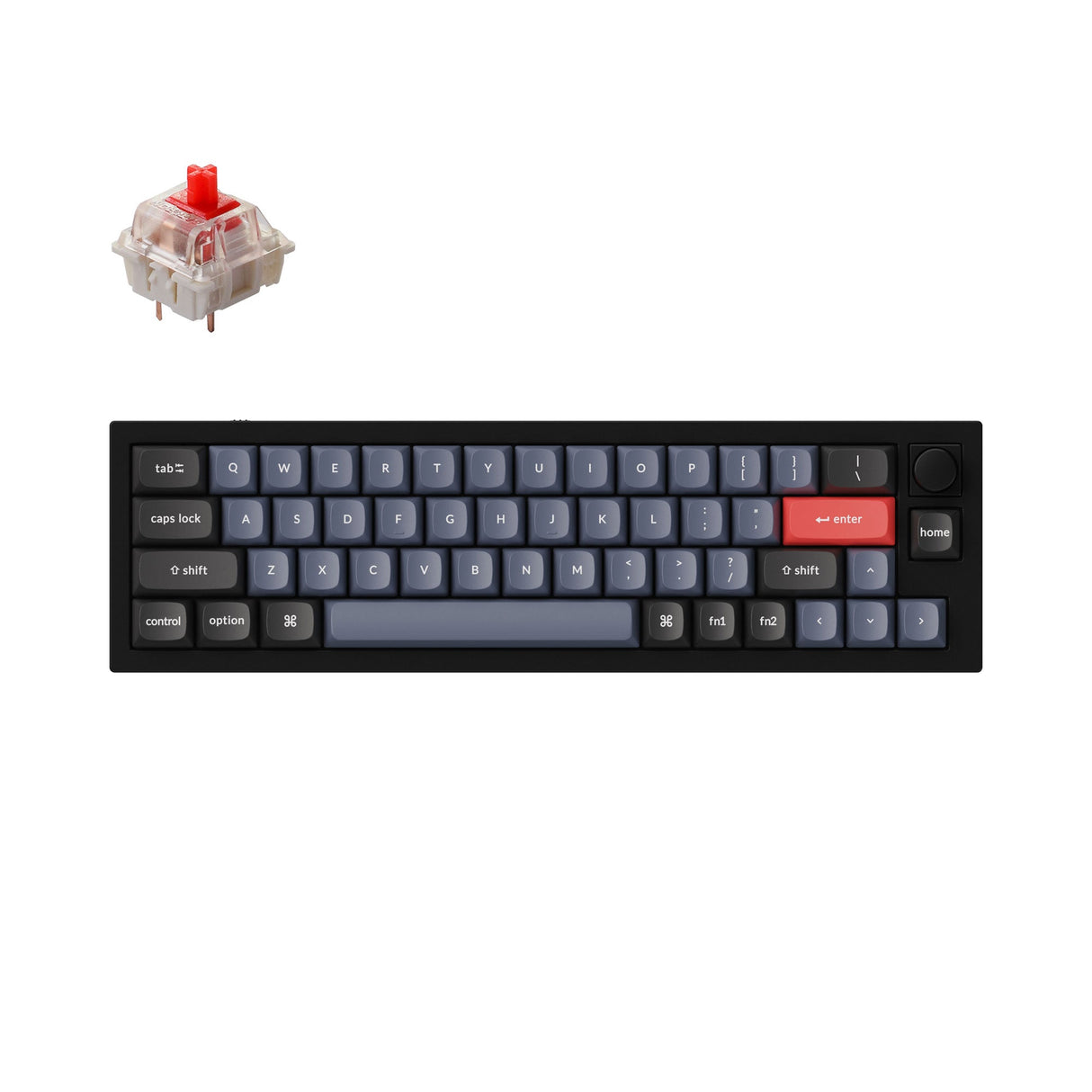

Pre-lubed Gateron G Pro Switch
The optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled Q9 version fitted with factory pre-lubricated Gateron G Pro switches, a smoother travel experience is guaranteed for you.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q9 also supports third-party stabilizers, including Cherry or Durock.
ANSI & ISO layouts.
ISO layout is widely used in Europe while the ANSI layout is widely used by the rest of the world.
Note: If you live in Europe, we recommend you to purchase the "Barebone ISO” version with the corresponding ISO keycaps. The "Barebone ISO” is suitable for all ISO keyboard countries like the UK, Germany, France, Italy, Spain, Denmark, Norway, Sweden, Finland, Iceland, etc.
ANSI Layout
ISO Layout
What's in the box?
Specs
| Width | 94.1 mm |
|---|---|
| Length | 326 mm |
| Front Height | 19.6 mm (without keycaps) |
| Back Height | 30.7 mm (without keycaps) |
| Feet Height | 2.5 mm |
| Angle | 5.2° |
| Weight | 1050 g ± 10g (the fully assembled weight) |
| Body Material | Full CNC machined aluminum |
| Plate | Steel |
| Polling Rate | 1000Hz |
| Keycaps (Fully Assembled Version) | Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape) |
|---|---|
| Switches | Gateron G Pro (Fully assembled version) |
| Backlight | South-facing RGB LED |
| Switch Support | Hot-swappable (5 pin & 3 pin) |
| Stabs | Screw-in PCB stabs |
| Connectivity | Type-C cable |
| Cable | Type-C cable + Type-A to Type-C adapter |
| MCU | Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash) |
| Operating Environment | -10℃ to 50℃ |
Learn more about the Keychron Q9 such as the Q9 shortcuts, assembling the Q9, factory reset, and more in the FAQ section.
