Keychron Q5 Pro QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection
Keychron Q5 Pro QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection - Fully Assembled Knob Carbon Black / DE-ISO / Keychron K Pro Red is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

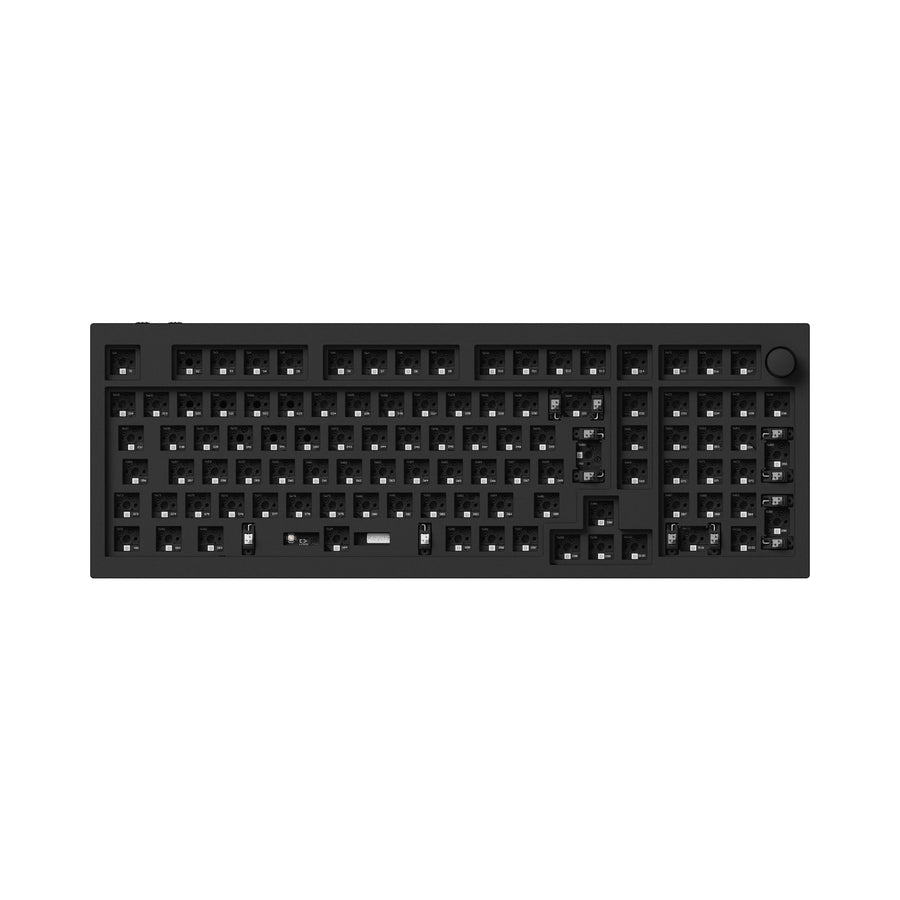

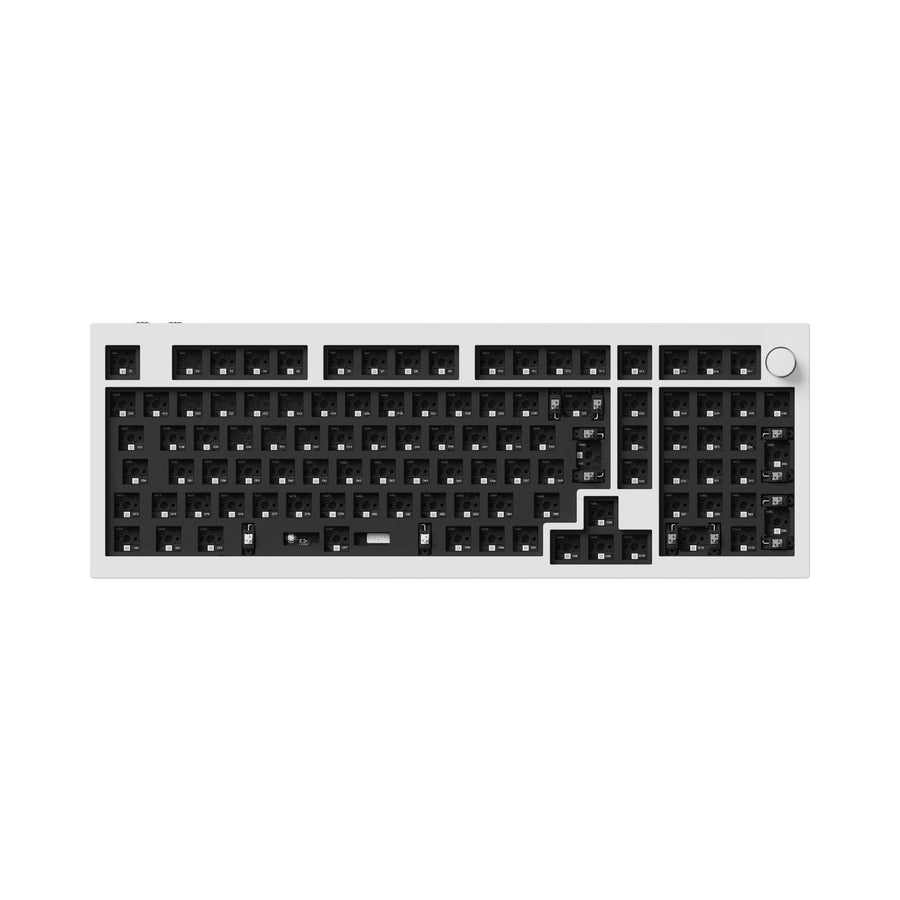

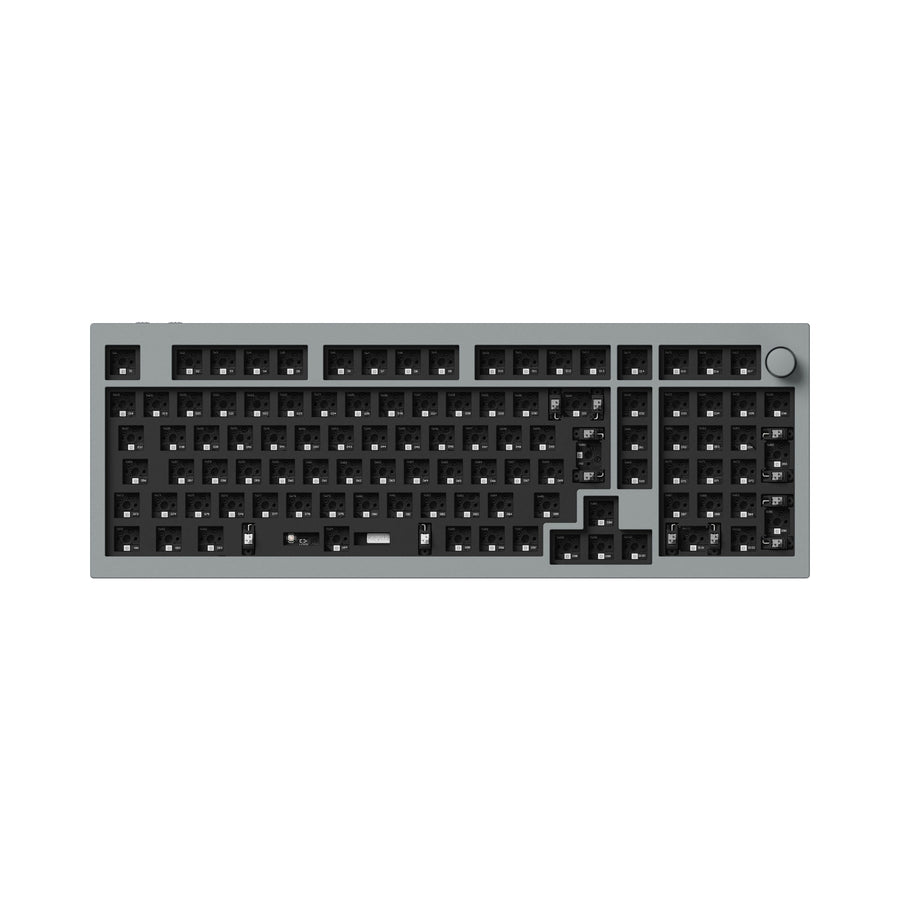

- The keyboard PCB, the case, and the PC plate.
- Keycaps (included Mac & Windows keycaps).
- Switches.
No discount codes can be used for Q5 Pro.
Keychron Q5 Pro QMK/VIA Wireless Custom Mechanical Keyboard ISO Lay...
Keychron Q5
ISO Layout Versions
Setting the best example for efficient space usage, the Q5 has a compact 96% layout design while retaining all the essential functions and number keys. With its full metal CNC machined body, double-gasket design, and QMK/VIA support, the Q5 is the ultimate choice for an almost full-size keyboard.
Choose the keycaps, switches and more accessories for your Q5 ISO Layout version
Q5 ISO Layout Version
The Keychron Q5 QMK custom mechanical keyboard ISO layout collection comes with the UK, German, Nordic, Swiss, French, and Spanish layouts. Each Q5 ISO layout keyboard is also equipped with extra keycaps that fully satisfy your needs.

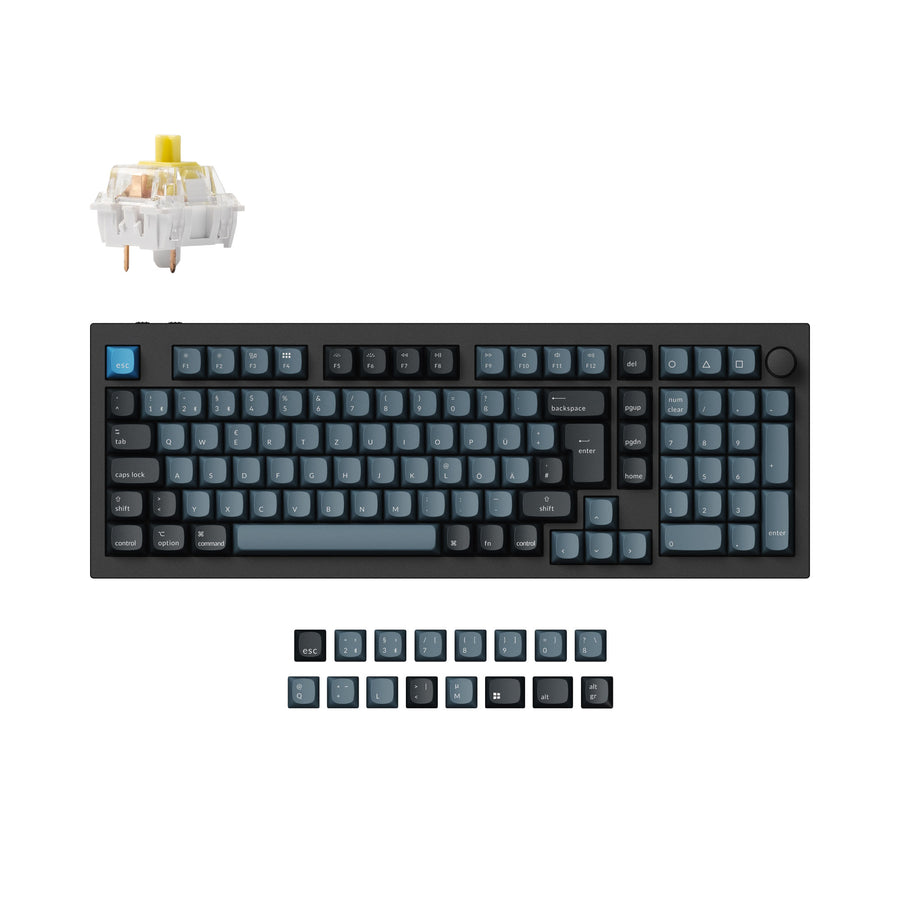

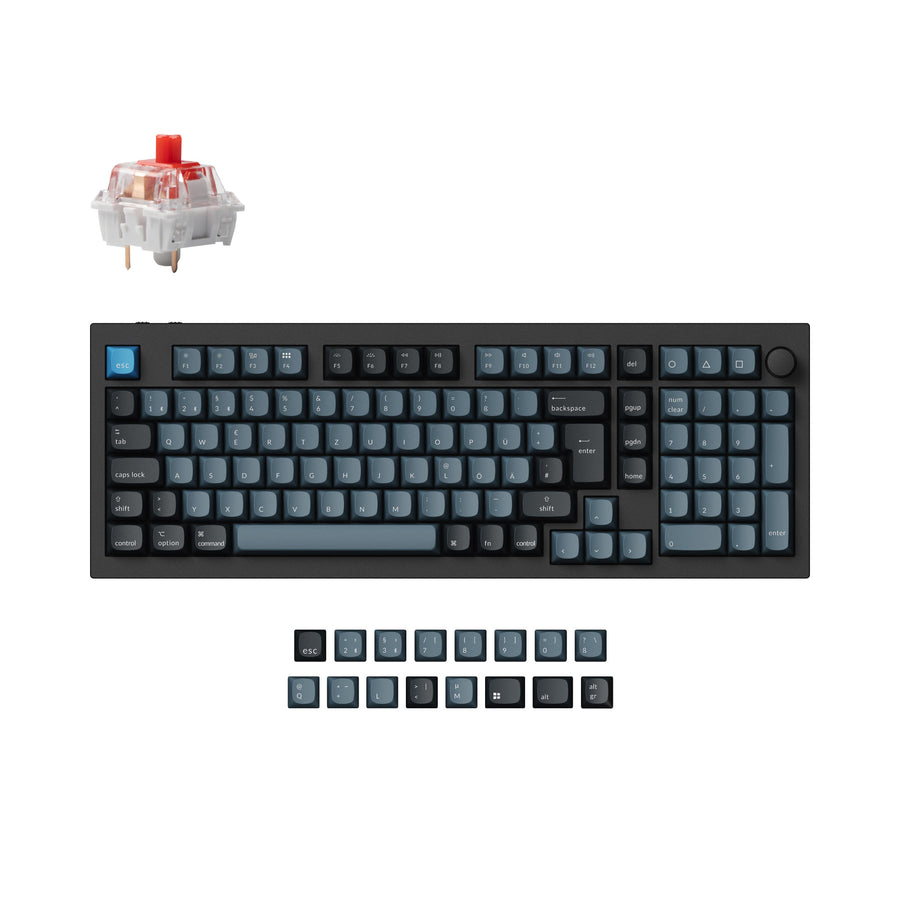

🇩🇪 German DE-ISO Layout

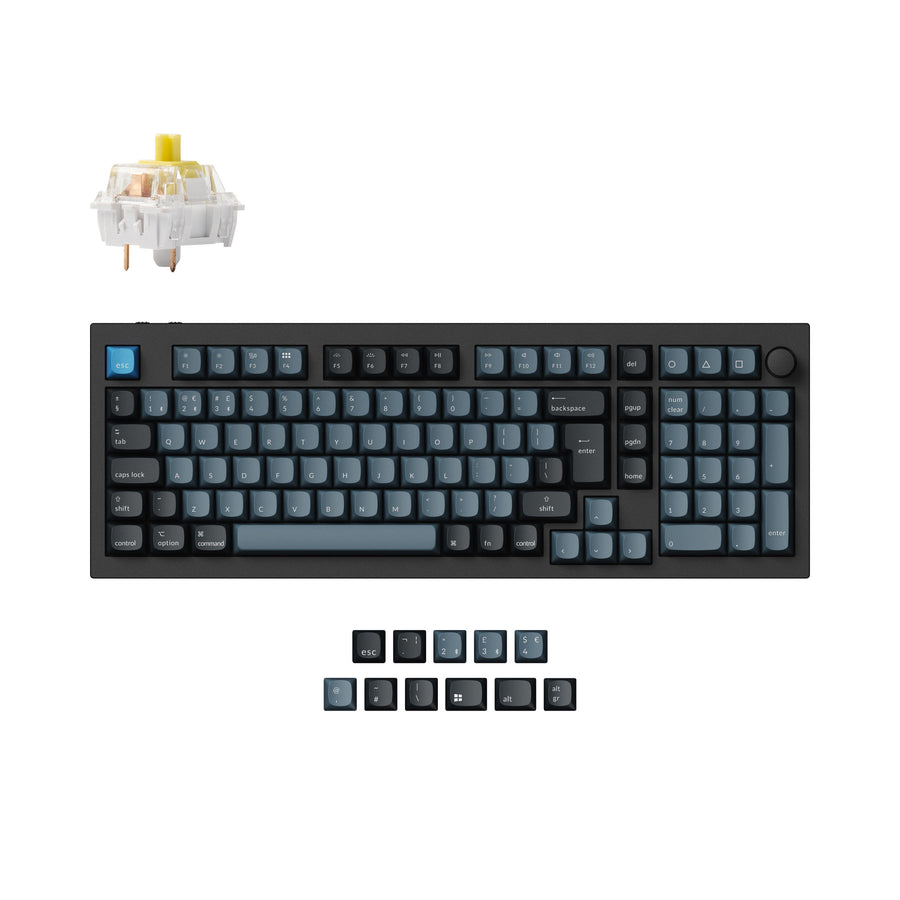

🇬🇧 UK-ISO Layout

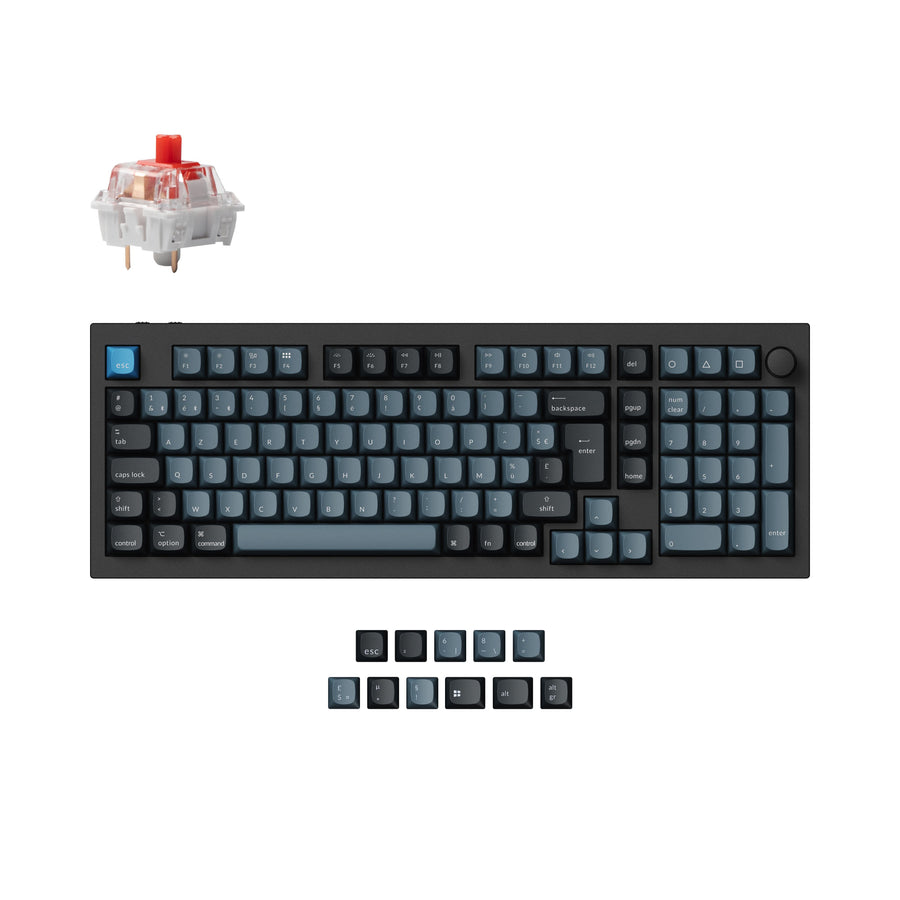

🇫🇷 FR-ISO Layout

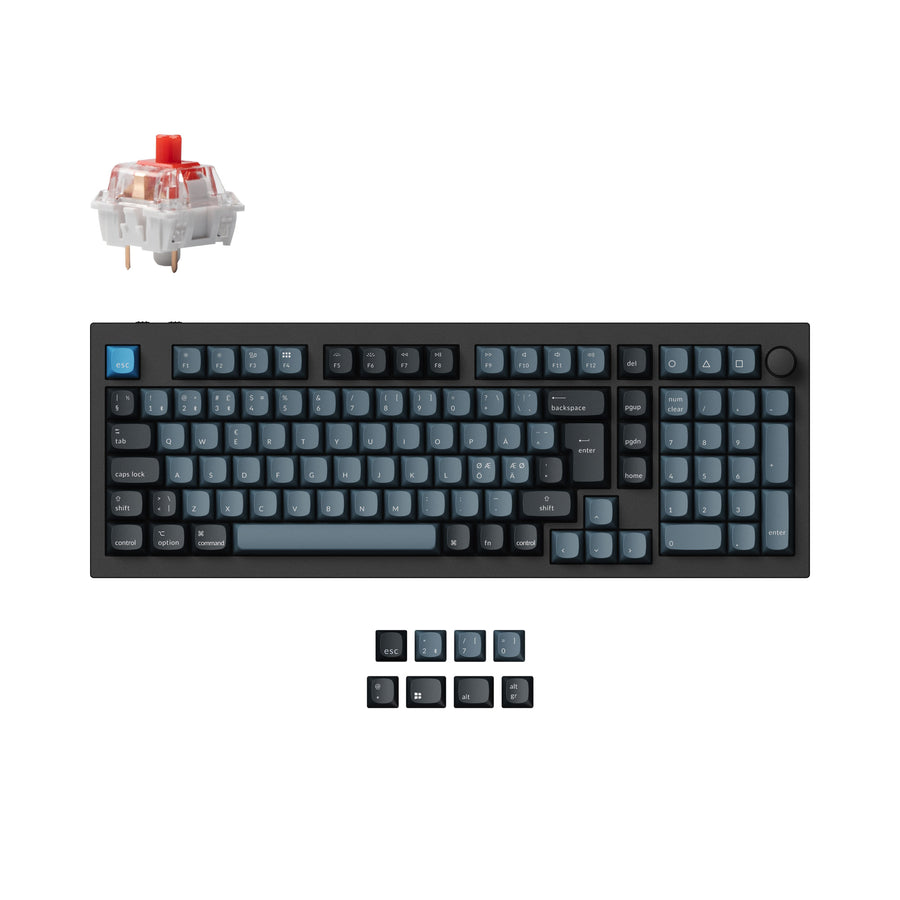

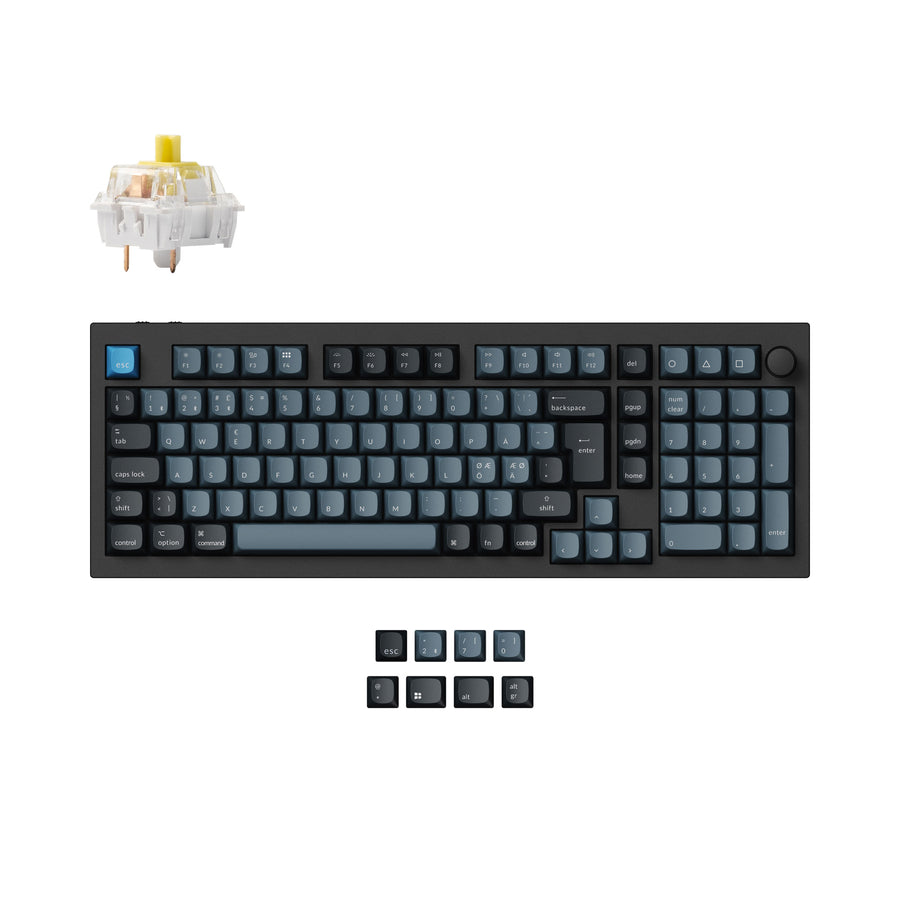

🇩🇰 🇫🇮 🇮🇸 🇳🇴 🇸🇪 Nordic-ISO Layout

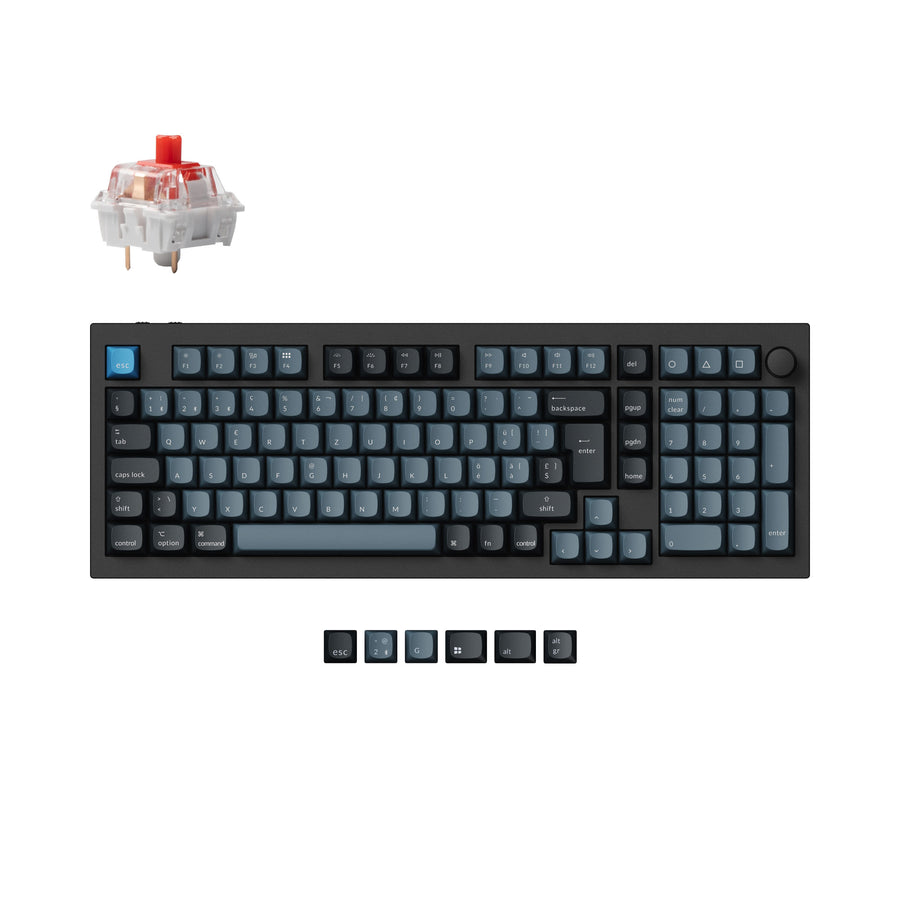

🇨🇭 Swiss-ISO Layout

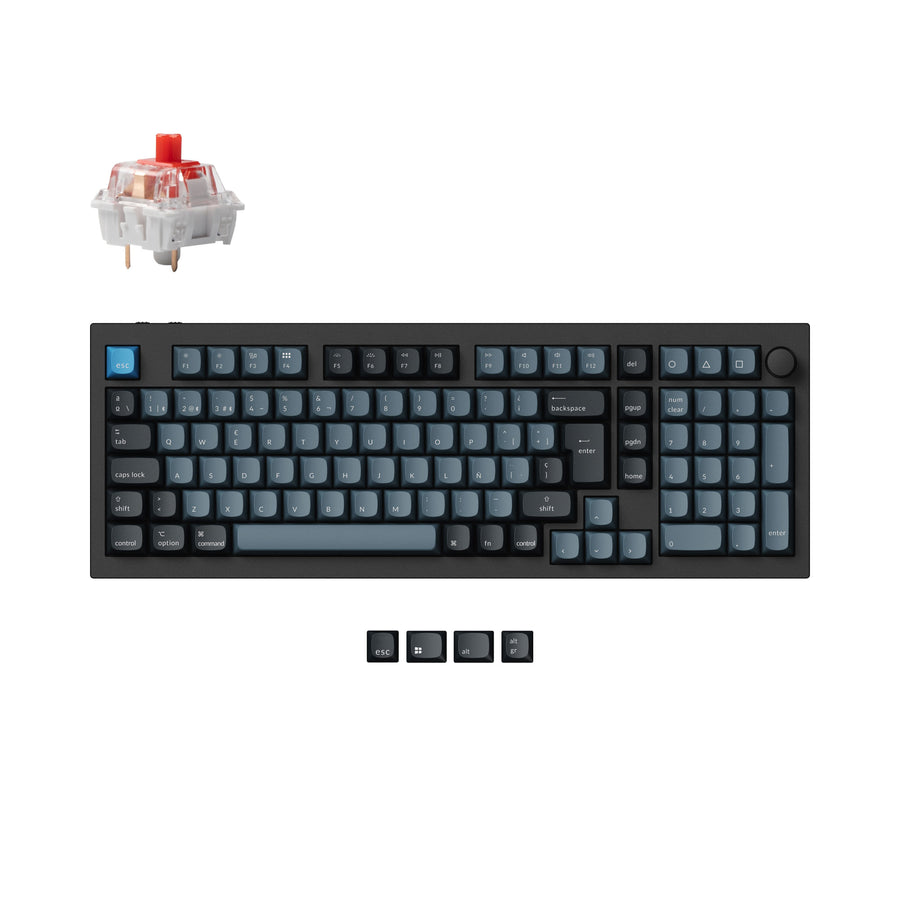

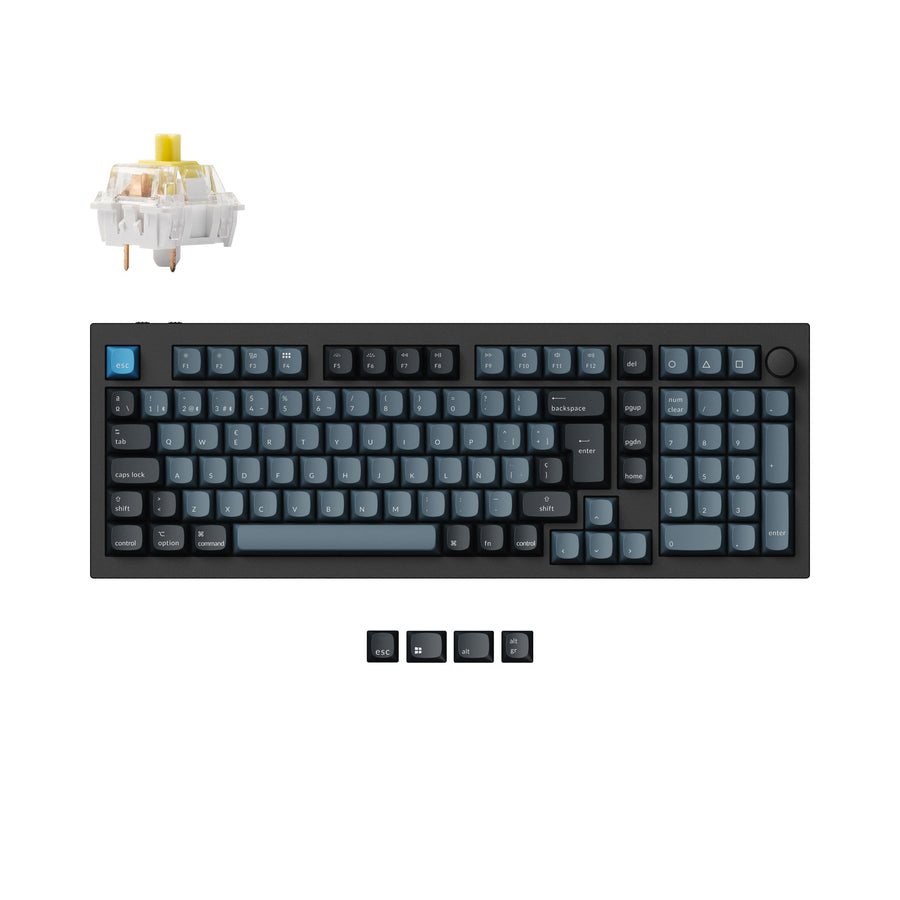

🇪🇸 ES-ISO Layout
With keycaps for macOS installed on Q5 DE-ISO layout.
With keycaps for Windows installed on Q5 DE-ISO layout.
A Refined Piece Of Metal Art
The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q5.
All-Around Customizable Keyboard
To build a fully customizable keyboard, we designed every component easily assembled. Therefore, you can customize and adjust each component you want.
Double-Gasket Design
The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
An Epic Core Inside The Keyboard
A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.
OSA Profile ABS Backlight Shine-Through Keycaps
To further leverage your typing experience, the Q5 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and ABS backlight shine-through keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.
Switch layouts between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron Q5 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Programmable Knob
Designed to enhance your creative workflow, the premium rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.
You can easily customize the Q5's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.
Program with QMK & Launcher.
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.
Click here to use Keychron Launcher* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.
Hot-swappable.
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.
South-facing RGB LED Lights.
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
Pre-lubed Gateron G Pro Switch
The optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled Q5 version fitted with factory pre-lubricated Gateron G Pro switches, a smoother travel experience is guaranteed for you.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q5 also supports third-party stabilizers.
Typing Sound Test
What's in the box?
Specs
| Width | 145 mm |
|---|---|
| Length | 390.4 mm |
| Front Height | 20.2 mm (without keycaps) |
| Back Height | 33.4 mm (without keycaps) |
| Feet Height | 2.4 mm |
| Angle | 5.2° |
| Weight | 2200 g ± 10g (the fully assembled weight) |
| Body Material | Full CNC machined aluminum |
| Plate | Steel |
| Polling Rate | 1000Hz |
| Layout | DE-ISO, UK-ISO, Swiss-ISO, Nordic-ISO, FR-ISO, and ES-ISO |
| Keycaps (Fully Assembled Version) | OSA Profile ABS backlight shine-through keycaps |
|---|---|
| Switches | Gateron G Pro (fully assembled version) |
| Backlight | South-facing RGB LED |
| Switch Support | Hot-swappable (5 pin & 3 pin) |
| Stabs | Screw-in PCB stabs |
| Connectivity | Type-C cable |
| Cable | Type-C cable + Type-A to Type-C adapter |
| MCU | Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash) |
| Operating Environment | -10℃ to 50℃ |
Learn more about the Keychron Q5 such as the Q5 shortcuts, assembling the Q5, factory reset, and more in the FAQ section.
