Keychron Low Profile Mechanical Switch
Keychron Low Profile Mechanical Switch - Banana / 110 Switches is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Each Keychron Low Profile Mechanical Switch Set comes with 45 switches and 110 switches options to choose.
Keychron Low Profile Mechanical Switch
Keychron Low Profile Mechanical Switch
You've come to the right place if you're looking for a fast, comfortable, and reliable low-profile mechanical switch. Our exclusive Keychron Low Profile Mechanical Switch triggers an input at 1.3 mm that is around 35% faster than a conventional switch, allowing for the responsiveness and reliability of mechanical switches in an ergonomically designed low profile keyboard. It delivers a smooth and distinct travel experience with up to 50 million keypresses.
Unique Dustproof Wall Structure
The MX-styled stem is designed with a unique dust wall structure to resist the intrusion of dust and reduce the stem wobbliness, which ensures a more stable typing feeling. It is also compatible with most low-profile keycaps with MX-style design.
Excellent Backlight Effect
With a transparent housing cover, these SMD-LED compatible switches have a high light transmittance and provide an excellent backlight effect.
Factory Pre-lubed
The Keychron Low Profile Mechanical Switch is factory pre-lubed which has reduced spring noise and internal scratchiness to enhance the smoothness of the switch.
Product Information

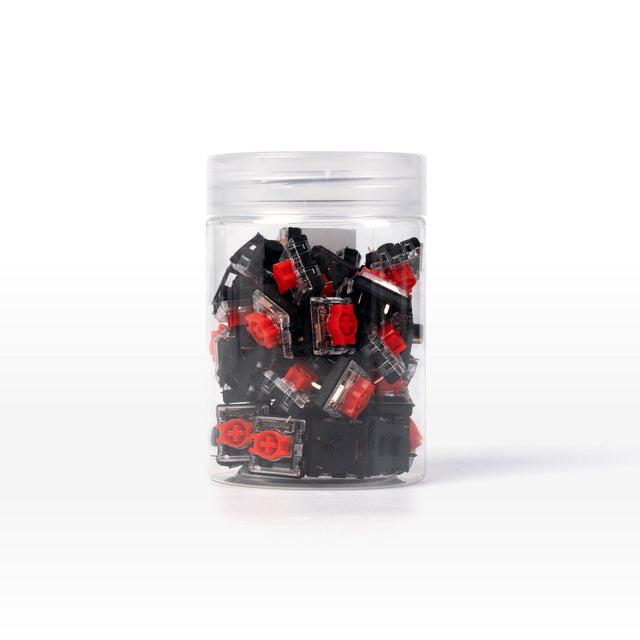

Low Profile Red Switch
| Type | Linear |
|---|---|
| Operation Force | 45±8 gf |
| Pre-Travel | 1.3±0.3 mm |
| Total Travel | 3.1±0.2 mm |
| Operation Life | Up to 50M cycles |
| Finger Strike Feeling | Vertical, fast and responsive, light pressing force, soft rebound |

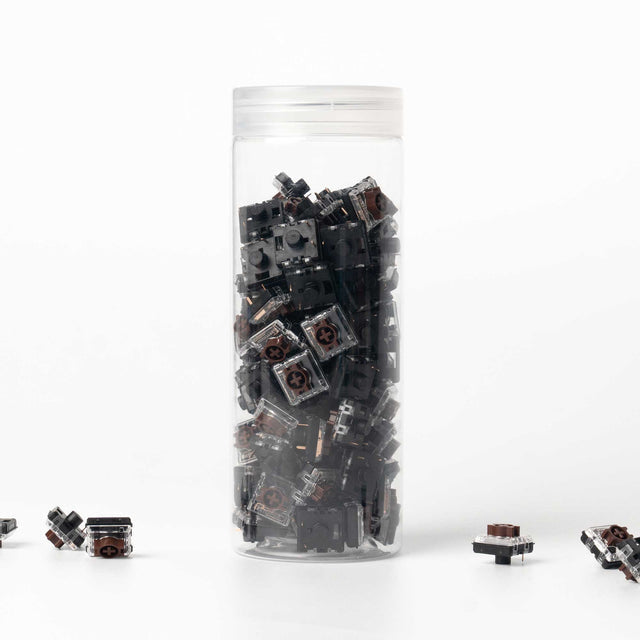

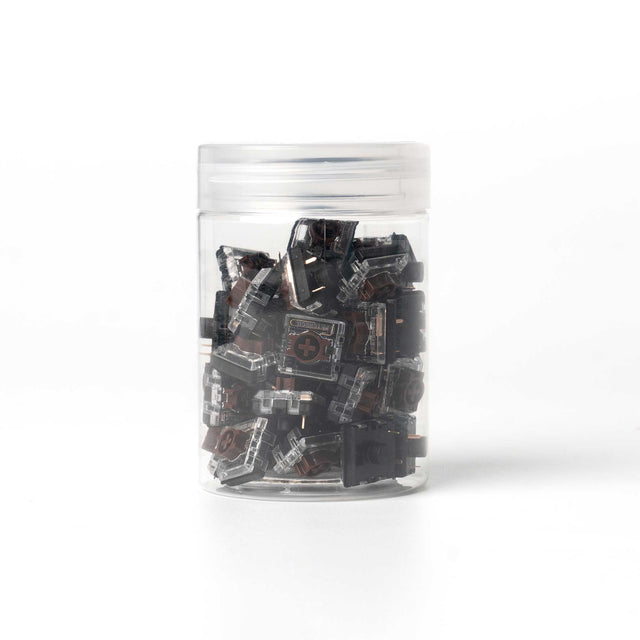

Low Profile Brown Switch
| Type | Linear |
|---|---|
| Operation Force | 47±8 gf |
| Pre-Travel | 1.7±0.4 mm |
| Total Travel | 3.1±0.3 mm |
| Operation Life | Up to 50M cycles |
| Finger Strike Feeling | Bump, fast and responsive, moderate pressing force, clear rebound |

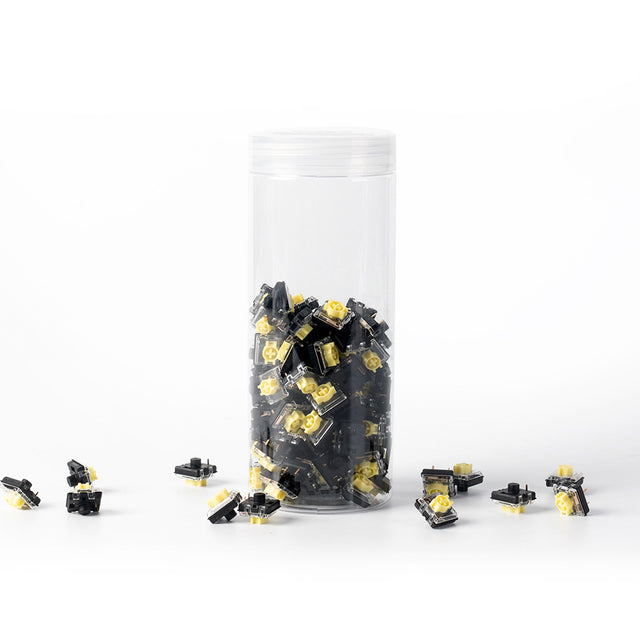

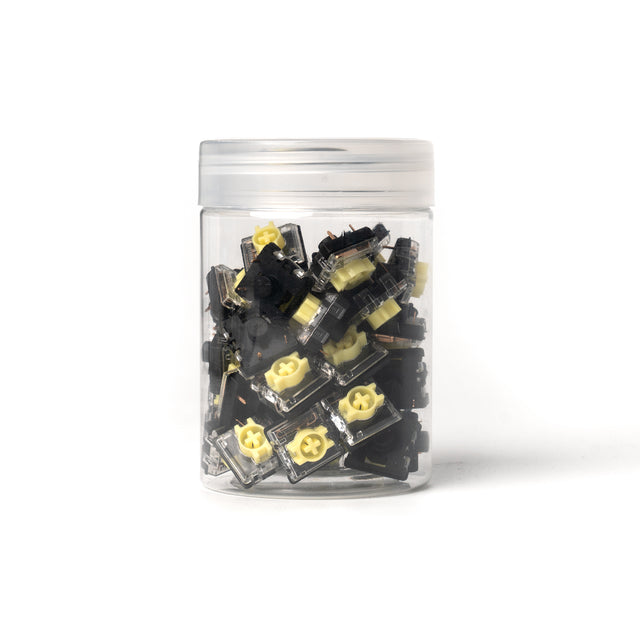

Low Profile Banana Switch
| Type | Tactile |
|---|---|
| Operation Force | 55±8 gf |
| Pre-Travel | 1.4±0.3 mm |
| Total Travel | 3.1±0.2 mm |
| Operation Life | Up to 50M cycles |
| Finger Strike Feeling | Bump at top, fast and responsive, strong pressing force, clear rebound |
Compatible Keyboards
K1* / K1 SE* / K3* / K5* / K5 SE* / K7* / K1 Pro* / K3 Pro* / K5 Pro* / K7 Pro* / K9 Pro* / K11 Pro* / K13 Pro* / K15 Pro* / K17 Pro* /K1 Max* / K3 Max* / K5 Max* / K7 Max* / K11 Max* / K13 Max* / K15 Max* / K17 Max* / S1*Low-Profile Gateron Mechanical keyboard (*Soldering is required in order to alter a switch on the K1, K3, K5 , S1, etc (Non-hot swappable version) Low-Profile Gateron Mechanical keyboard)
*Low profile Gateron Mechanical switch keyboard is not compatible with any conventional mx style mechanical switch.
